Parker Precision Pneumatic Input Signal Amplifiers | P3BA45 Series


 p3ba45-pneumatic-input-signal-amplifier

FEATURES

  • 1/2" and 3/4" ports (NPT, BSPP)
  • Pneumatic input signal for accurately controlling output pressure based on a predetermined ratio
  • Large supply and exhaust valves provide high forward and exhaust flows
  • Soft supply and exhaust valve seats minimize air consumption
  • Optional remote feedback port minimizes pressure drop at final control element under flow conditions
  • Optional adjustable bypass valve (1:1 ratio only) lets you tune for optimum dynamic response


Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)

P3BA4514A

1:1 pilot ratio, 1/4" port

1/4" 150 (w/ 100 psig supply)
128.8 (5.07) 114.3 (4.50)
P3BA4524A

1:2 pilot ratio, 1/4" port

1/4" 150 (w/ 100 psig supply) 128.8 (5.07) 114.3 (4.50)
P3BA4534A

1:3 pilot ratio, 1/4" port

1/4" 150 (w/ 100 psig supply) 128.8 (5.07) 114.3 (4.50)
P3BA4516A

1:1 pilot ratio, 3/4" port

3/4" 150 (w/ 100 psig supply) 128.8 (5.07) 114.3 (4.50)
P3BA4526A 1:2 pilot ratio, 3/4" port 3/4" 150 (w/ 100 psig supply) 128.8 (5.07) 114.3 (4.50)
P3BA4536A 1:3 pilot ratio, 3/4" port 3/4" 150 (w/ 100 psig supply) 128.8 (5.07) 114.3 (4.50)

*For BSPP ports, add an "H" to the end of the part number. For tapped exhaust option, add an "E" to the end of the part number. For by-pass valve, add "I" to the end of the part number.

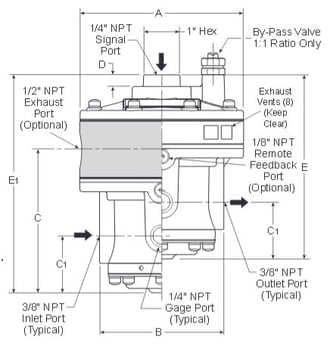

p3ba45-pneumatic-input-signal-amplifier-dimensions



Service Kits and Accessories

Part Number Description
PS19549-1 Service kit - 1:1 ratio
PS19549-1E Service kit - 1:1 ratio with tapped exhaust
PS19549-2 Service kit - 1:2 ratio
PS19549-3 Service kit - 1:3 ratio
PS19549-20E Service kit - 1:1 ratio with tapped exhaust, I option

Technical Specifications



Flow Capacity: 150 scfm (w/ 100 psig supply)
Maximum Supply Pressure: 250 psig (17 bar)
Maximum Output Pressure: 150 psig (10 bar)
Sensitivity:

1" water column - 1:1 ratio

2" water column - 1:2 ratio

3" water column - 1:3 ratio

Ambient Temperature: -40°F to 200°F
Port Size: 1/4", 3/4" (NPT, BSPP)

Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
