The P3RA102 regulator is designed for applications that require high capacity and accurate process control. A poppet valve which is balanced by a rolling diaphragm ensures a constant output pressure during wide supply pressure variations. Stability is maintained with an aspirator tube which adjusts air supply in accordance with flow velocity.

FEATURES

  • 1/4" ports (NPT, BSPP)
  • Control sensitivity of .125" water column variation for use in precision applications
  • Pressure-balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Separate control chamber isolates diaphragm from the main flow
  • Aspirator tube compensates downstream pressure drop under flow conditions

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)

P3RA10232

0.5 to 30 psig springs, NPT port

1/4" 40 (w/ 100 psig supply)
168.5 (6.63) 76.2 (3.00)
P3RA10242

1 to 60 psig springs, NPT port

1/4" 40 (w/ 100 psig supply) 168.5 (6.63) 76.2 (3.00)
P3RA10262

2 to 150 psig springs, NPT port

1/4" 40 (w/ 100 psig supply) 168.5 (6.63) 76.2 (3.00)

*For BSPP ports, add an "H" to the end of the part number. For non-relieving option, add an "N" to the end of the part number.

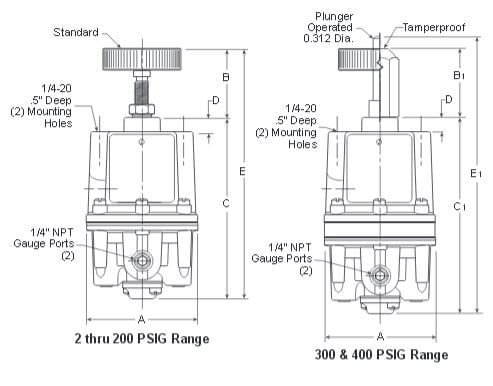

p34a102-standard-high-precision-regulator-dimensions



Service Kits and Accessories

Part Number Description
PS12125-1 Service kit - 0-200 psig, relieving
PS12125-4 Service kit - 0 to 200 psig, non-relieving
PS09921 Mounting bracket kit

Technical Specifications



Flow Capacity: 40 scfm (w/ 100 psig supply)
Ambient Temperature: -40°F to 200°F
Max. Supply Pressure: 35 bar (500 psig)
Port Size: 1/4" (NPT, BSPP)
