RParker Standard High Precision Vacuum Regulators | P3RA171 Series

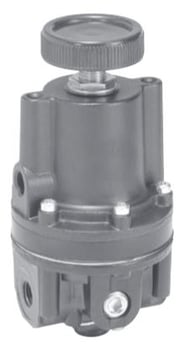

 p3ra171-high-precision-vacuum-regulator		 The P3RA171 is a high accuracy vacuum regulator that provides uniform vacuum regulation independent of vacuum supply changes and flow demand. This unit has a diaphragm assembly with three springs to provide a more balanced loading of the diaphragm.

FEATURES

  • 1/4" ports (NPT)
  • Control sensitivity of .125" water column variation for use in precision applications
  • Balanced supply valve minimizes effects of vacuum variation
  • Aspirator tube compensates for downstream pressure drop under flow conditions
  • Separate control chamber isolates diaphragm from the main flow
  • Unit construction allows you to service without removing from the line

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page

Part Numbers



Part Number  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)
P3RA17132NNKN

0.5 to 30 psig springs, NPT port

 1/4" 3 (w/ 650 torr supply)
 151.3 (5.96) 76.2 (3.00)

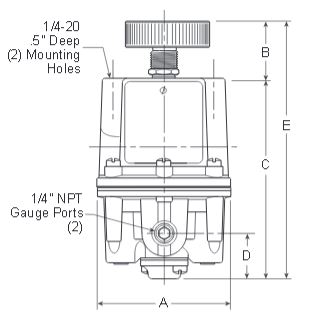

p3ra171-high-precision-vacuum-regulator-dimensions



Service Kits and Accessories

Part Number Description
PS20966-9 Service kit - 0-30" Hg, Nitrile, non-relieving
PS09921 Mounting bracket kit

Technical Specifications



Flow Capacity: 3 scfm (w/ 650 torr supply)
Ambient Temperature: -40°F to 200°F
Port Size: 1/4" (NPT)
