Parker Compact High Precision Regulators | P3RA302 Series

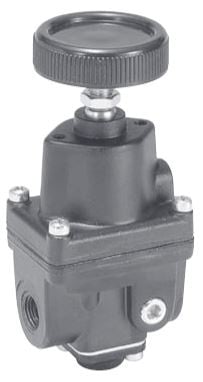

 p34a302-compact-high-precision-regulator		 The P3RA302 regulator is designed for applications that require high capacity and accurate process control in a small package. A poppet valve which is balanced by a convoluted diaphragm ensures a constant output pressure during wide supply pressure variations. Stability is maintained with an aspirator tube which adjusts air supply in accordance with flow velocity.

FEATURES

  • 1/4" ports (NPT, BSPP)
  • Control sensitivity of .250" water column variation for use in precision applications
  • Compensating diaphragm allows regulator to remain unaffected by supply pressure changes
  • Aspirator tube compensates downstream pressure drop during flow conditions
  • Separate control chamber isolates diaphragm from main flow

SYMBOLS

Regulator-Symbol-1

Back to Precision Regulators Main Page

Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Height (E)

mm (in)

Width (A)

mm (in)
P3RA30232

0.5 to 30 psig springs, NPT port

 1/4" 40 (w/ 100 psig supply)
 132.6 (5.22) 57.3 (2.25)
P3RA30242

1 to 60 psig springs, NPT port

 1/4" 40 (w/ 100 psig supply) 132.6 (5.22) 57.3 (2.25)
P3RA30252

2 to 100 psig springs, NPT port

 1/4" 40 (w/ 100 psig supply) 132.6 (5.22) 57.3 (2.25)

*For BSPP ports, add an "H" to the end of the part number. For non-relieving option, add an "N" to the end of the part number.

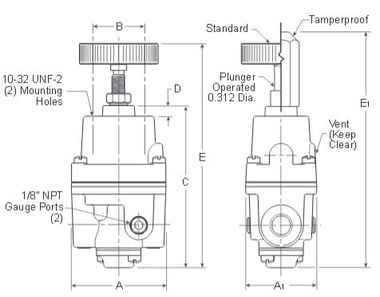

p34a302-compact-high-precision-regulator-dimensions



Service Kits and Accessories

Part Number Description
PS16116-13 Service kit - 1/2 to 30, 1 to 60 & 2 to 100 psig, standard
PS16116-14 Service kit - 1/2 to 30, 1 to 60 & 2 to 100 psig, non-relieving
PS417BP Mounting bracket kit

Technical Specifications



Flow Capacity: 40 scfm (w/ 100 psig supply)
Ambient Temperature: -40°F to 200°F
Max. Supply Pressure: 17 bar (250 psig)
Port Size: 1/4" (NPT, BSPP)

Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
