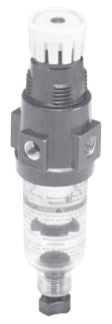

Prep-Air II Piggyback Filter/Regulators | Parker 14E Miniature Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

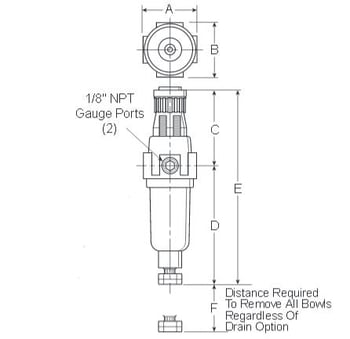

Height (E) mm (in) |
Width (A) mm (in) |
Depth (B) mm (in) |
| 14E01B13F |
Poly bowl, with twist drain |
1/8" | 16 | 10.3 (150) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E05B13F |
Poly bowl, with automatic pulse drain |
1/8" | 16 | 10.3 (150) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E03B13F | Metal bowl, with twist drain | 1/8" | 16 | 17.2 (250) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E07B13F | Metal bowl, with automatic pulse drain |
1/8" | 16 | 17.2 (250) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E11B13F | Poly bowl, with twist drain | 1/4" | 18 | 10.3 (150) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E15B13F | Poly bowl, with automatic pulse drain | 1/4" | 18 | 10.3 (150) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E13B13F | Metal bowl, with twist drain | 1/4" | 18 | 17.2 (250) | 158 (6.21) | 41 (1.62) | 40 (1.58) |
| 14E17B13F | Metal bowl, with automatic pulse drain | 1/4" | 18 | 17.2 (250) | 158 (6.21) | 41 (1.62) | 40 (1.58) |

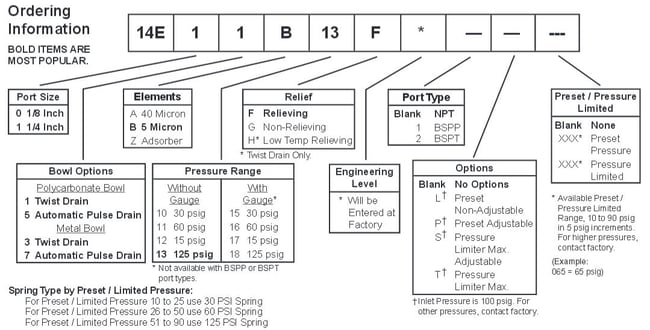

* For non-relieving regulator, replace "F" with "G". For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number. See ordering information chart below for more pressure ranges and filter options.
Service Kits and Accessories
| Part Number | Description |
| PS408BP | Poly bowl kit - automatic drain |
| PS404P | Poly bowl kit - twist drain |
| PS451BP | Metal bowl kit - automatic drain |
| PS447BP | Metal bowl kit - twist drain |
| K4515N18030 | 30 psig gauge (0 to 2.1 bar) |
| K4515N18060 | 60 psig gauge (0 to 4.1 bar) |
| K4515N18160 | 160 psig gauge (0 to 11.0 bar) |
| PS401P | 40 micron filter element |
| PS403P | 5 micron filter element |
| PS452P | Adsorber |
| P78652 |
Panel mount nut |
| PS428P | Poppet / Piston Kits - Unbalanced, Non-relieving |
| PS426P | Poppet / Piston Kits - Unbalanced, Relieving |
| PS417BP | Mounting bracket kit |
Technical Specifications
| Flow Capacity: |
1/8": 16 SCFM 1/4": 18 SCFM |
| Operating Temperature: |
32°F to 125°F - poly 32°F to 175°F - metal |
| Max. Supply Pressure: |
150 psig (10.3 bar) - poly 250 psig (17.2 bar) - metal |
| Port Size: | 1/8", 1/4" (BSPP, BSPT, NPT) |
| Weight: | 0.4 lbs (0.18 kg) |
