Prep-Air II Filters | Parker 14F Miniature Series

     Prep-Air-II-14F-Miniature-Filter

    FEATURES

    • 1/8" or 1/4" ports
    • High efficiency 5 micron element
    • Excellent water removal efficiency
    • Easily disassembled for servicing without tools
    • Interchangeable twist and automatic pulse drains
    • Unique deflector plate that swirls air stream to ensure maximum water and dirt separation

    SYMBOLS

    Twist-Drain P31-Mini-Particulate-Filter-Pulse-Drain
    Twist Drain Auto Drain

    Back to Prep-Air II Main Page

    Part Numbers



    Part Number*  Description

    Port Size

    Flow
    (scfm)

    		Max. Bar (psig)

    Height (B+C+D)

    mm (in)

    Width (A)

    mm (in)

    F

    mm (in)
    14F01B

    Poly bowl - twist drain

    		  1/8" 22 10 (150) 146 (5.74)  43 (1.69) 41 (1.60)
    14F05B

    Poly bowl - auto pulse drain

    		  1/8" 22 10 (150) 146 (5.74)  43 (1.69) 41 (1.60)
    14F03B  Metal bowl - twist drain  1/8" 22 17 (250) 146 (5.74)   43 (1.69) 41 (1.60)
    14F07B  Metal bowl - auto pulse drain 1/8" 22 17 (250) 146 (5.74)  43 (1.69)
    		 41 (1.60)
    14F11B Poly bowl - twist drain 1/4 24 10 (150) 146 (5.74)  43 (1.69) 41 (1.60)
    14F15B Poly bowl - auto pulse drain 1/4 24 10 (150) 146 (5.74)  43 (1.69) 41 (1.60)
    14F13B Metal bowl - twist drain 1/4 24 17 (250) 146 (5.74)  43 (1.69) 41 (1.60)
    14F17B Metal bowl - auto pulse drain 1/4 24 17 (250) 146 (5.74)  43 (1.69) 41 (1.60)
    * For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number. Replace "B" with "Z" for adsorber filters.

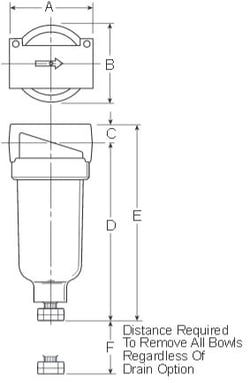

    Prep-Air-II-14F-Miniature-Filter-Dimensions




    Service Kits and Accessories

    Part Number Description
    PS408BP Poly bowl kit / Automatic pulse drain
    PS404P Poly bowl kit / Twist drain
    PS451BP Metal bowl kit / Automatic pulse drain
    PS447BP Metal bowl kit / Twist drain
    PS403P 5μ filter element
    PS407P 5μ filter element cartridge kit
    PS401P 40μ filter element
    PS452P Adsorber
    PS417BP Mounting bracket kit

    Technical Specifications

    Flow Capacity:

    1/8": 22 SCFM

    1/4": 24 SCFM
    Operating Temperature: (Metal Bowl)  32°F to 175°F
      (Poly Bowl) 32°F to 125°F
    Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
      (Poly Bowl) 10 bar (150 psig)
    Standard Filtration: 5 micron
    Bowl Capacity:
    		 1 oz
    Port Size: 1/8", 1/4" (BSPP, BSPT, NPT)
    Weight: 0.41 lbs (0.18 kg)
