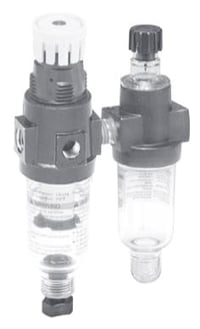

Prep-Air II Close Nippled Two-Unit Combinations | Parker 14G Miniature Series
![]() |
FEATURES
SYMBOLS
|
Part Numbers
Part Number* | Description |
Port Size |

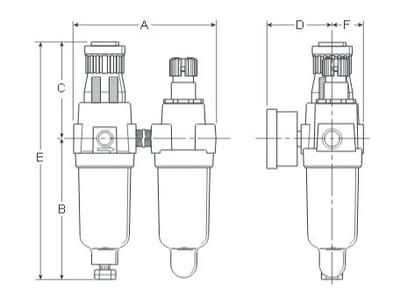

Height (E) mm (in) |
Width (A) mm (in) |
14G01B13F0G |
Poly bowl with twist drain filter, no lubricator drain |
1/8" | 158 (6.21) | 95 (3.75) |
14G11B13F0G | Poly bowl with twist drain filter, no lubricator drain |
1/4" | 158 (6.21) | 95 (3.75) |
14G03B13F3G | Metal bowl with twist drain filter & twist drain lubricator |
1/8" | 158 (6.21) | 95 (3.75) |
14G13B13F3G | Metal bowl with twist drain filter & twist drain lubricator | 1/4" | 158 (6.21) | 95 (3.75) |
14G05B13F0G | Poly bowl with automatic pulse drain filter, no lubricator drain |
1/8" | 158 (6.21) | 95 (3.75) |
14G15B13F0G | Poly bowl with automatic pulse drain filter, no lubricator drain | 1/4" | 158 (6.21) | 95 (3.75) |
14G07B13F3G | Metal bowl with automatic pulse drain filter & twist drain lubricator |
1/8" | 158 (6.21) | 95 (3.75) |
14G17B13F3G | Metal bowl with automatic pulse drain filter & twist drain lubricator |
1/4" | 158 (6.21) | 95 (3.75) |

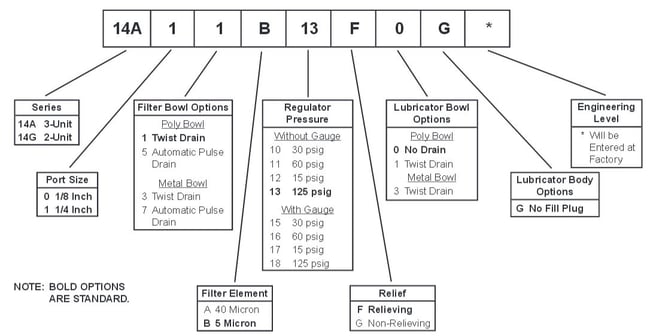

* For non-relieving regulator, replace "F" with "G". For 40 micron filter element, replace "B" with "A". See ordering information chart below for more pressure ranges and lubricator options.
