Prep-Air II Regulators | Parker 14R Miniature Series
![]() |
FEATURES
SYMBOLS
|
Part Numbers
Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

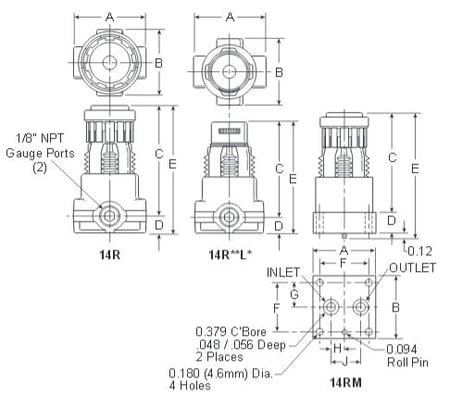

Height (E) mm (in) |
Width (A) mm (in) |
Depth (B) mm (in) |
14R013F |
Relieving, without gauge |
1/8" | 13 | 20.7 (300) | 73 (2.88) | 42 (1.65) | 40 (1.56) |
14R018F |
Relieving, with gauge |
1/8" | 13 | 20.7 (300) | 73 (2.88) | 42 (1.65) | 40 (1.56) |
14R113F | Relieving, without gauge |
1/4 | 15 | 20.7 (300) | 73 (2.88) | 42 (1.65) | 40 (1.56) |
14R118F | Relieving, with gauge |
1/4 | 15 | 20.7 (300) | 73 (2.88) | 42 (1.65) | 40 (1.56) |

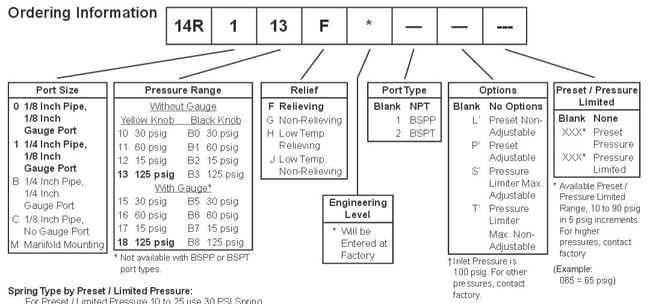

* For non-relieving regulator, replace "F" with "G". For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number.
![Prep-Air-II-14R-Miniature-Regulator-Ordering Prep-Air-II-14R-Miniature-Regulator-Ordering](https://www.mfcp.com/hs-fs/hubfs/images/product/Prep-Air_II_FRLs/Prep-Air-II-14R-Miniature-Regulator-Ordering.jpg?width=650&name=Prep-Air-II-14R-Miniature-Regulator-Ordering.jpg)
Service Kits and Accessories
Part Number | Description |
K4515N18030 | 30 psig, 1/8 NPT gauge (0 to 2.1 bar) |
K4515N18060 | 60 psig, 1/8 NPT gauge (0 to 4.1 bar) |
K4515N18160 | 160 psig, 1/8 NPT gauge (0 to 11.0 bar) |
K4520N14060 | 60 psig, 1/4 NPT gauge (0 to 4.1 bar) |
K4520N14160 | 160 psig, 1/4 NPT gauge (0 to 11.0 bar) |
P78652 |
Panel mount nuts - plastic |
P01531 | Panel mount nuts - metal |
PS428P | Poppet / Piston Kits - Unbalanced, Non-relieving |
PS426P | Poppet / Piston Kits - Unbalanced, Relieving |
PS417BP | Mounting bracket kit |
Technical Specifications
Flow Capacity: |
1/8": 13 SCFM 1/4": 15 SCFM |
Operating Temperature: |
32°F to 125°F (Low Temp: -4°F to 125°F) |
Max. Supply Pressure: | 20.7 bar (300 psig) |
Port Size: | 1/8", 1/4" (BSPP, BSPT, NPT) |
Weight: | 0.3 lbs (0.14 kg) |
