Parker Air Preparation Products | Prep-Air II FRLs | 05 & 15 Economy Series

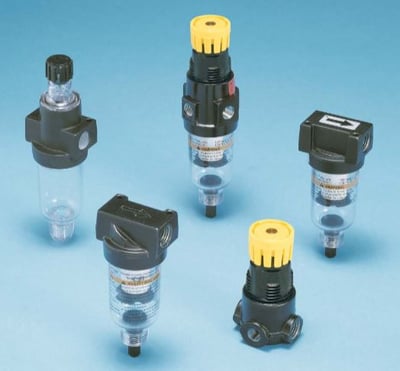

prep-air-II-miniature-series

FEATURES

2.00 in body width
1/4" and 3/8" ported

Flows up to:	1/4"	3/8"
05F Filter	54 scfm	70 scfm
05R Regulator	30 scfm	40 scfm
05E Piggyback	30 scfm	40 scfm
15F Filter	30 scfm	30 scfm
15R Regulator	21 scfm	28 scfm
15L Lubricator	40 scfm	40 scfm

Back to Prep-Air II Main Page

Filters | Parker 05F & 15F Series


05F Economy Filter	15F Economy Filter
1/4" or 3/8" ports 40 micron element standard Excellent water removal efficiency Large filter element surface guarantees low pressure drop and increased element life Unique deflector plate that swirls air stream to ensure maximum water and dirt separation Shown with recommended bowl guard	1/4" or 3/8" ports Removes liquid aerosols and sub-micron particles Liquids gravitate to the bottom of the element and will not re-enter the airstream Oil free air for critical applications Interchangeable twist and automatic pulse drains Differential pressure indicator standard

Regulators | Parker 05R & 15R Series


05R Economy Regulator	15R Economy Regulator
1/4" or 3/8" ports Secondary aspiration plus balanced poppet provides quick response and accurate pressure regulation Rolling diaphragm for extended life Removable non-rising knob for panel mounting and tamper resistance Easily serviced Reverse flow	1/4" or 3/8" ports Solid control piston with resilient seat for service-free operation Non-rising, "locking" adjusting knob Compact, 3.30 inch high by 2.12 inch wide Easily serviced

Lubricators | Parker 15L Series

	1/4" or 3/8" ports Proportional oil delivery over a wide range of air flows Generates oil particles of 5 micron or smaller downstream to lubricate systems with complex piping arrangements Precision needle valve assures repeatable oil delivery and provides simple adjustment Transparent sight dome for 360° visibility Removable drip control knob for tamper resistance
15L Economy Lubricator

Piggybacks (Filter/Regulators) | Parker 05E Series

	1/4" or 3/8" ports Excellent water removal efficiency Rolling diaphragm for extended life Removable non-rising knob for tamper resistance Space-saving piggyback offers both filter and regulator features in one integral unit Quick response and accurate pressure regulation regardless of changing flow or inlet pressure 40 micron filter element standard
05E Piggyback Filter/Regulator

Parker 15 Series Popular Combinations


15G Economy Two-Unit Close Nippled Combo	15A Economy Three-Unit Close Nippled Combo
1/4" or 3/8" ports Piggyback filter/regulator plus lubricator combination Regulator can be mounted with knob in up or down position 40 micron element standard See individual component pages for more information	1/4" or 3/8" ports Filter, regulator and lubricator combination Regulator can be mounted with knob in up or down position 40 micron element standard See individual component pages for more information


15H Economy Two-Unit Modular Combo	15B Economy Three-Unit Modular Combo
1/4" or 3/8" ports Piggyback filter/regulator plus lubricator combination Regulator can be mounted with knob in up or down position 40 micron element standard Gauges, port blocks and manifold blocks must be ordered separately See individual component pages for more information	1/4" or 3/8" ports Filter, regulator and lubricator combination Regulator can be mounted with knob in up or down position 40 micron element standard Gauges, port blocks and manifold blocks must be ordered separately See individual component pages for more information
