Prep-Air II Filters | Parker 05F Economy Series

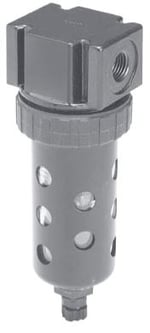

 Prep-Air-II-05F-Economy-Filter

FEATURES

  • 1/4" or 3/8" ports
  • 40 micron element standard
  • Excellent water removal efficiency
  • Large filter element surface guarantees low pressure drop and increased element life
  • Unique deflector plate that swirls air stream to ensure maximum water and dirt separation
  • Shown with recommended bowl guard

SYMBOLS

Twist-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Twist Drain Auto Drain

Back to Prep-Air II Main Page

Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (B+C+D)

mm (in)

Width (A)

mm (in)

F

mm (in)
05F12A

Poly bowl - metal guard, twist drain

  1/4" 54 10 (150) 202 (7.97)  51 (2.00) 57 (2.25)
05F1PA

Poly bowl - metal guard, auto pulse drain

  1/4" 54 10 (150) 202 (7.97)  51 (2.00) 57 (2.25)
05F14A  Metal bowl w/sight gauge - twist drain  1/4" 54 17 (250) 202 (7.97)  51 (2.00) 57 (2.25)
05F1TA  Metal bowl w/sight gauge - auto pulse drain 1/4" 54 17 (250) 202 (7.97)  51 (2.00) 57 (2.25)
05F22A Poly bowl - metal guard, twist drain 3/8" 70 10 (150) 202 (7.97)  51 (2.00) 57 (2.25)
05F2PA Poly bowl - metal guard, auto pulse drain 3/8" 70 10 (150) 202 (7.97)  51 (2.00) 57 (2.25)
05F24A Metal bowl w/sight gauge - twist drain 3/8" 70 17 (250) 202 (7.97)  51 (2.00) 57 (2.25)
05F2TA Metal bowl w/sight gauge - auto pulse drain 3/8" 70 17 (250) 202 (7.97)  51 (2.00) 57 (2.25)
* For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number. Replace "A" with "Z" for adsorber filters, "B" for 5 micron elements.

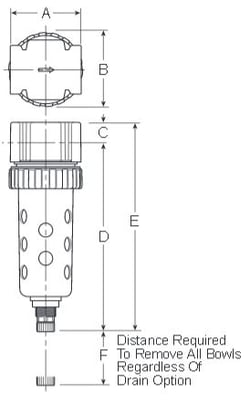

Prep-Air-II-05F-Economy-Filter-Dimensions


Service Kits and Accessories

Part Number Description
PS905P Bowl guard kit
PS995P Poly bowl kit / Automatic pulse drain
PS932P Poly bowl kit / Twist drain
PS997P Metal bowl kit / Automatic pulse drain
PS934P Metal bowl kit / Twist drain
PS996P Metal bowl w/sight gauge / automatic pulse drain
PS935P Metal bowl w/sight gauge / twist drain
PS902P 5μ filter element
PS901P 40μ filter element
PS931P Adsorber
PS943P Mounting bracket kit

Technical Specifications

Flow Capacity:

1/4": 54 SCFM

3/8": 70 SCFM
Operating Temperature: (Metal Bowl)  32°F to 175°F
  (Poly Bowl) 32°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Poly Bowl) 10 bar (150 psig)
Standard Filtration: 40 micron
Bowl Capacity:
 2 oz
Port Size: 1/4", 3/8" (BSPP, BSPT, NPT)
Weight: 1.2 lb (0.54 kg)
