Prep-Air II Regulators | Parker 05R Economy Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

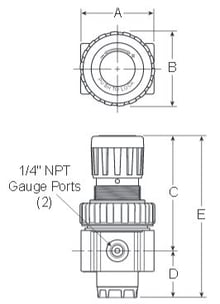

Height (E) mm (in) |
Width (A) mm (in) |
Depth (B) mm (in) |
| 05R113A |
Relieving, without gauge |
1/4" | 30 | 17.2 (250) | 113 (4.44) | 51 (2.00) | 52 (2.06) |
| 05R118A |
Relieving, with 160 psi gauge |
1/4" | 30 | 17.2 (250) | 113 (4.44) | 51 (2.00) | 52 (2.06) |
| 05R213A | Relieving, without gauge |
3/8" | 40 | 17.2 (250) | 113 (4.44) | 51 (2.00) | 52 (2.06) |
| 05R218A | Relieving, with 160 psi gauge |
3/8" | 40 | 17.2 (250) | 113 (4.44) | 51 (2.00) | 52 (2.06) |

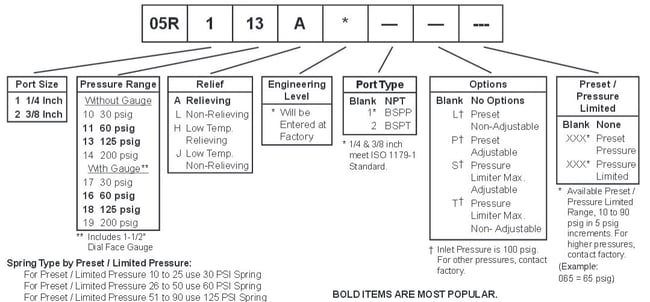

* For non-relieving regulator, replace "A" with "L". Add a "1" to the end of the part number for BSPP ports. Add a "2" to the end of the part number for BSPT ports. See ordering information chart below for other pressure ranges and relief options.
Service Kits and Accessories
| Part Number | Description |
| K4515N14030 | 30 psig, 1-1/2" dial face (0 to 2.1 bar) |
| K4515N14060 | 60 psig, 1-1/2" dial face (0 to 4.1 bar) |
| K4515N14160 | 160 psig, 1-1/2" dial face (0 to 11.0 bar) |
| K4515N14300 | 300 psig, 1-1/2" dial face (0 to 20.0 bar) |
| K4520N14060 | 60 psig, 2" dial face (0 to 4.1 bar) |
| K4520N14160 | 160 psig, 2" dial face (0 to 11.0 bar) |
| K4520N14300 | 300 psig, 2" dial face (0 to 20.0 bar) |
| PS964P | Panel mount nuts - metal |
| PS915P | Bonnet assembly kit |
| PS417BP | Mounting bracket kit |
Technical Specifications
| Flow Capacity: |
1/4": 30 SCFM 3/8": 40 SCFM |
| Operating Temperature: |
32°F to 125°F (Low Temp: -4°F to 125°F) |
| Max. Supply Pressure: | 17.2 bar (250 psig) |
| Port Size: | 1/4", 3/8" (NPT, BSPP, BSPT) |
| Weight: | 1.1 lbs (0.49 kg) |
