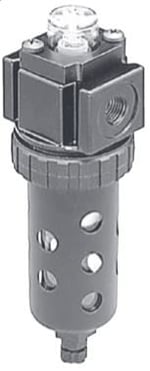

Prep-Air II Filters | Parker 15F Economy Series
![]() |
FEATURES
SYMBOLS
|
Part Numbers
Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

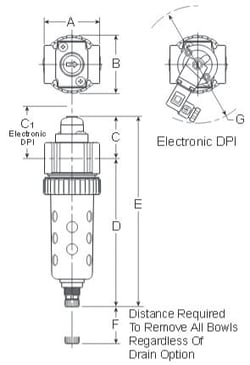

Height (B+C+D) mm (in) |
Width (A) mm (in) |
F mm (in) |
15F12E |
Poly bowl - metal guard, twist drain |
1/4" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F1PE |
Poly bowl - metal guard, automatic pulse drain |
1/4" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F14E | Metal bowl w/sight gauge - twist drain | 1/4" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F1TE | Metal bowl w/sight gauge - automatic pulse drain |
1/4" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F22E | Poly bowl - metal guard, twist drain | 3/8" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F2PE | Poly bowl - metal guard, automatic pulse drain |
3/8" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F24E | Metal bowl w/sight gauge - twist drain | 3/8" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
15F2TE | Metal bowl w/sight gauge - automatic pulse drain |
3/8" | 30 | 10 (150) | 226 (8.91) | 51 (2.00) | 45 (1.77) |
[G diameter= 4.50 in (114 mm)]
Service Kits and Accessories
Part Number | Description |
PS905P | Bowl guard kit |
PS995P | Poly bowl kit / Automatic pulse drain |
PS932P | Poly bowl kit / Twist drain |
PS997P | Metal bowl kit / Automatic pulse drain |
PS934P | Metal bowl kit / Twist drain |
PS996P | Metal bowl w/sight gauge / automatic float drain |
PS935P | Metal bowl w/sight gauge / twist drain |
PS924P | Grade 6 filter element |
PS930P | Grade 19 filter element |
PS764 | Electronic DPI replacement kit |
PS943P | Mounting bracket kit |
Technical Specifications
Flow Capacity (with Grade 6 element): |
1/4": 30 SCFM 3/8": 30 SCFM |
Operating Temperature: | (Metal Bowl) 32°F to 175°F |
(Poly Bowl) 32°F to 125°F | |
Max. Supply Pressure (with DPI): |
(Metal Bowl) 10 bar (150 psig) |
(Poly Bowl) 10 bar (150 psig) | |
Standard Filtration: | Grade 6 element |
Bowl Capacity: |
2 oz |
Port Size: | 1/4", 3/8" (BSPP, BSPT, NPT) |
Weight: | 1.2 lb (0.54 kg) |
