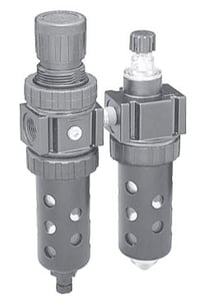

Prep-Air II Close Nippled Two-Unit Combinations | Parker 15G Economy Series
![]() |
FEATURES
SYMBOLS
|
Part Numbers
Part Number* | Description |
Port Size |

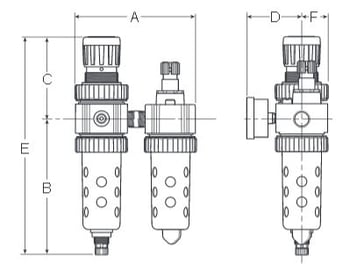

Height (E) mm (in) |
Width (A) mm (in) |
15G12A13A2N |
Poly bowl with metal bowl guard & twist drain filter |
1/4" | 216 (8.50) | 114 (4.49) |
15G1PA13A2N | Poly bowl with metal bowl guard & automatic pulse drain filter | 1/4" | 216 (8.50) | 114 (4.49) |
15G14A13A4N | Metal bowl with sight gauge & twist drain filter |
1/4" | 216 (8.50) | 114 (4.49) |
15G1TA13A4N | Metal bowl with sight gauge and automatic pulse drain filter |
1/4" | 216 (8.50) | 114 (4.49) |
15G22A13A2N | Poly bowl with metal bowl guard & twist drain filter | 3/8" | 216 (8.50) | 114 (4.49) |
15G2PA13A2N | Poly bowl with metal bowl guard & automatic pulse drain filter | 3/8" | 216 (8.50) | 114 (4.49) |
15G24A13A4N | Metal bowl with sight gauge & twist drain filter | 3/8" | 216 (8.50) | 114 (4.49) |
15G2TA13A4N | Metal bowl with sight gauge and automatic pulse drain filter | 3/8" | 216 (8.50) | 114 (4.49) |

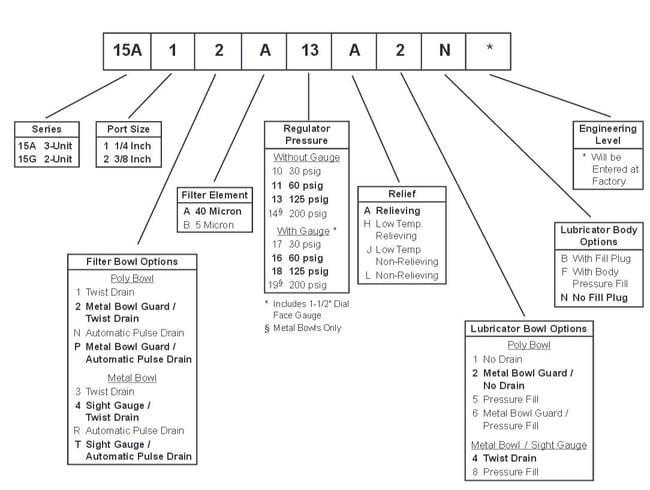

* For non-relieving regulator, replace "A" with "L". For 5 micron filter element, replace "A" with "B". See ordering information chart below for more pressure ranges and lubricator options.
