Prep-Air II Regulators | Parker 15R Economy Series

 Prep-Air-II-15R-Economy-Regulator

FEATURES

  • 1/4" or 3/8" ports
  • Solid control piston with resilient seat for service-free operation
  • Non-rising, "locking" adjusting knob
  • Compact, 3.30 inch high by 2.12 inch wide
  • Easily serviced

SYMBOLS

Regulator-Symbol-1

Back to Prep-Air II Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

Depth (B)

mm (in)

15R113F

Relieving, without gauge

1/4" 21 17.2 (250) 84 (3.30)  54 (2.12) 51 (2.00)
15R118F

Relieving, with gauge

 1/4" 21 17.2 (250) 84 (3.30)  54 (2.12) 51 (2.00)
15R213F Relieving, without gauge
3/8" 28 17.2 (250) 84 (3.30)  54 (2.12) 51 (2.00)
15R218F Relieving, with gauge
3/8" 28 17.2 (250) 84 (3.30)  54 (2.12) 51 (2.00)

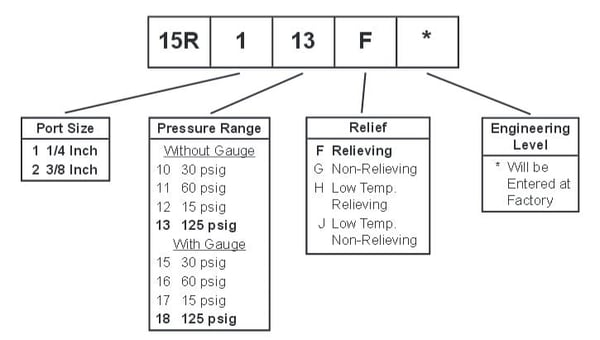

* For non-relieving regulator, replace "F" with "G". See ordering information chart below for other pressure ranges and relief options.

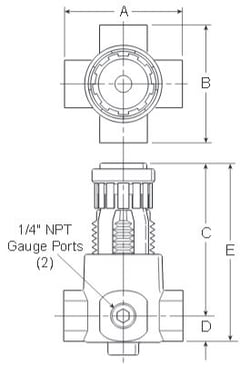

Prep-Air-II-15R-Economy-Regulator-Dimensions




Prep-Air-II-15R-Economy-Regulator-Ordering

Service Kits and Accessories

Part Number Description
K4515N18030 30 psig, 1/8 NPT gauge (0 to 2.1 bar)
K4515N18060 60 psig, 1/8 NPT gauge (0 to 4.1 bar)
K4515N18160 160 psig, 1/8 NPT gauge (0 to 11.0 bar)
K4520N14060 60 psig, 1/4 NPT gauge (0 to 4.1 bar)
K4520N14160 160 psig, 1/4 NPT gauge (0 to 11.0 bar)
P78652
Panel mount nuts - plastic
P01531 Panel mount nuts - metal
PS424BP Body service kit
L01369 Bonnet assembly kit
PS417BP Mounting bracket kit

Technical Specifications

Flow Capacity:

1/4": 21 SCFM

3/8": 28 SCFM

Operating Temperature:

32°F to 125°F

(Low Temp: -4°F to 125°F)

Max. Supply Pressure: 17.2 bar (250 psig)
Port Size: 1/4", 3/8" (NPT)
Weight: 0.5 lbs (0.23 kg)
