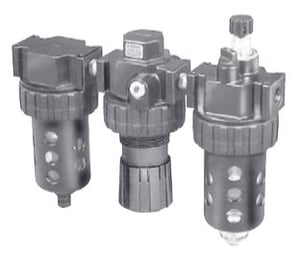

Prep-Air II Close Nippled Three-Unit Combinations | Parker 06A Compact Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |

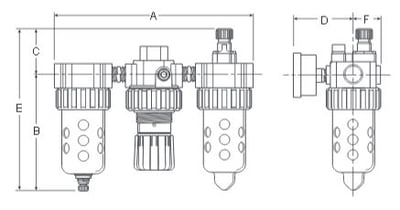

Height (E) mm (in) |
Width (A) mm (in) |
| 06A12A13A2B |
Poly bowl with metal bowl guard & twist drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06A16A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/4" | 264 (10.38) | 156 (6.13) |
| 06A14A13A4B | Metal bowl with sight gauge & twist drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06A18A13A4B | Metal bowl with sight gauge and automatic float drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06A22A13A2B | Poly bowl with metal bowl guard & twist drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06A26A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06A24A13A4B | Metal bowl with sight gauge & twist drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06A28A13A4B | Metal bowl with sight gauge and automatic float drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06G32A13A2B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06A36A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06A34A13A4B | Metal bowl with sight gauge & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06A38A13A4B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
* For non-relieving regulator, replace "A" with "L". For 5 micron filter element, replace "A" with "B". For micro-mist, replace "06G" with "16G" for two-unit and "06A" with "16A" for three-unit combinations. See ordering information chart below for more pressure ranges and lubricator options.
