Prep-Air II Three-Unit Modular Combinations | Parker 06B Compact Series

 Prep-Air-II-06H-Compact-Two-Unit-Modular-Combination

FEATURES

  • 1/4", 3/8" or 1/2" ports
  • Filter, regulator and lubricator combination
  • 40 micron element standard
  • See individual component pages for more information

SYMBOLS

14G-Combo-Symbol

Back to Prep-Air II Main Page


Part Numbers



Part Number*  Description

Port Size

Height (E)

mm (in)

Width (A)

mm (in)

06B12A13A2B

Poly bowl with metal bowl guard & twist drain filter

 1/4" 199 (7.82) 240 (9.46)
06B16A13A2B Poly bowl with metal bowl guard & automatic float drain filter 1/4" 199 (7.82)

240 (9.46)

06B14A13A4B Metal bowl with sight gauge & twist drain filter
1/4" 199 (7.82) 240 (9.46)
06B18A13A4B Metal bowl with sight gauge and automatic float drain filter
1/4" 199 (7.82) 240 (9.46)
06B22A13A2B Poly bowl with metal bowl guard & twist drain filter 3/8" 199 (7.82) 240 (9.46)
06B26A13A2B Poly bowl with metal bowl guard & automatic float drain filter 3/8" 199 (7.82) 240 (9.46)
06B24A13A4B Metal bowl with sight gauge & twist drain filter 3/8" 199 (7.82) 240 (9.46)
06B28A13A4B Metal bowl with sight gauge and automatic float drain filter 3/8" 199 (7.82) 240 (9.46)
06B32A13A2B Poly bowl with metal bowl guard & twist drain filter 1/2" 199 (7.82) 240 (9.46)
06B36A13A2B Poly bowl with metal bowl guard & automatic float drain filter 1/2" 199 (7.82) 240 (9.46)
06B34A13A4B Metal bowl with sight gauge & twist drain filter 1/2" 199 (7.82) 240 (9.46)
06B38A13A4B Poly bowl with metal bowl guard & twist drain filter 1/2" 199 (7.82) 240 (9.46)

* For non-relieving regulator, replace "A" with "L". For 5 micron filter element, replace "A" with "B". For micro-mist, replace "06B" with "16B." See ordering information chart below for more pressure ranges and lubricator options.

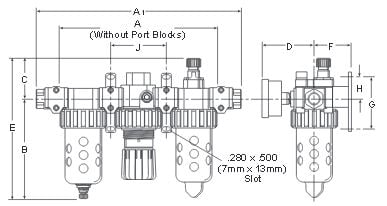

Prep-Air-II-06B-Compact-Three-Unit-Modular-Combination-Dimensions



Prep-Air-II-06H-Compact-Two-Unit-Modular-Combination-Ordering
