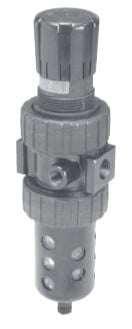

Prep-Air II Piggyback Filter/Regulators | Parker 06E Compact Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |
Height (E) mm (in) |
Width (A) mm (in) |
Depth (B) mm (in) |
| 06E12A13A |
Poly bowl, with twist drain |
1/4" | 46 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E16A13A |
Poly bowl, with automatic float drain |
1/4" | 46 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E14A13A | Metal bowl, with twist drain | 1/4" | 46 | 17.2 (250) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E18A13A | Metal bowl, with automatic float drain |
1/4" | 46 | 17.2 (250) | 265 (10.43) | 71 (2.81) |
70 (2.74) |
| 06E22A13A | Poly bowl, with twist drain | 3/8" | 55 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E26A13A | Poly bowl, with automatic float drain | 3/8" | 55 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E24A13A | Metal bowl, with twist drain | 3/8" | 55 | 17.2 (250) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E28A13A | Metal bowl, with automatic float drain | 3/8" | 55 | 17.2 (250) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E32A13A | Poly bowl, with twist drain | 1/2" | 61 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E36A13A | Poly bowl, with automatic float drain | 1/2" | 61 | 10.3 (150) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E34A13A | Metal bowl, with twist drain | 1/2" | 61 | 17.2 (250) | 265 (10.43) | 71 (2.81) | 70 (2.74) |
| 06E38A13A | Metal bowl, with automatic float drain | 1/2" | 61 | 17.2 (250) | 265 (10.43) | 71 (2.81) | 70 (2.74) |

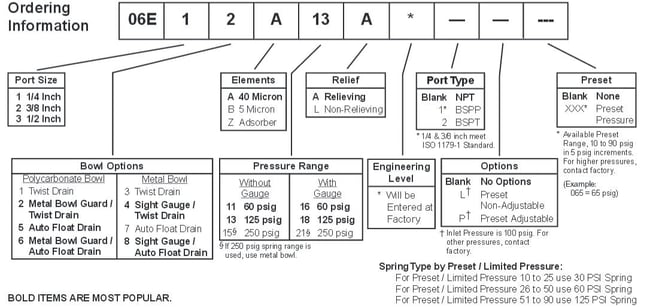

* For non-relieving regulator, replace "A" with "L". For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number. See ordering information chart below for more pressure ranges and filter options.

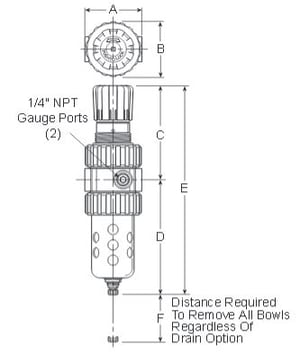

[F= 57 mm (2.25 in)]
Service Kits and Accessories
| Part Number | Description |
| PS722P | Poly bowl kit - automatic float drain |
| PS732P | Poly bowl kit - twist drain |
| PS726P | Metal bowl kit - automatic float drain |
| PS734BP | Metal bowl kit - twist drain |
| K4520N14060 | 60 psig gauge (0 to 4.1 bar) |
| K4520N14160 | 160 psig gauge (0 to 11.0 bar) |
| K4520N14300 | 300 psig gauge (0 to 20.0 bar) |
| PS701P | 40 micron filter element |
| PS702P | 5 micron filter element |
| PS731P | Adsorber |
| P04082 |
Panel mount nut |
| PS711P | Relieving service kit (includes poppet) |
| PS710P | Non-relieving service kit (includes poppet) |
| PS707P | Mounting bracket kit |
Technical Specifications
| Flow Capacity: |
1/4": 46 SCFM 3/8": 55 SCFM 1/2": 61 SCFM |
| Operating Temperature: |
32°F to 125°F - poly 32°F to 175°F - metal |
| Max. Supply Pressure: |
150 psig (10.3 bar) - poly 250 psig (17.2 bar) - metal |
| Port Size: | 1/4", 3/8", 1/2" (BSPP, BSPT, NPT) |
| Weight: | 1.6 lbs (0.7 kg) |
