Prep-Air II Filters | Parker 06F Compact Series

 Prep-Air-II-06F-Compact-Filter

FEATURES

  • 1/4", 3/8" or 1/2" ports
  • 40 micron element standard
  • Excellent water removal efficiency
  • Large filter element surface guarantees low pressure drop and increased element life
  • Unique deflector plate that swirls air stream to ensure maximum water and dirt separation
  • Optional automatic float drain available.
  • Shown with recommended bowl guard

SYMBOLS

Twist-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Twist Drain Auto Drain

Back to Prep-Air II Main Page

Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (B+C+D)

mm (in)

Width (A)

mm (in)

F

mm (in)
06F12A

Poly bowl - metal guard, twist drain

  1/4" 53 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F16A

Poly bowl - metal guard, auto float drain

  1/4" 53 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F14A  Metal bowl w/sight gauge - twist drain  1/4" 53 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
06F18A  Metal bowl w/sight gauge - auto float drain 1/4" 53 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
06F22A Poly bowl - metal guard, twist drain 3/8" 80 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F26A Poly bowl - metal guard, auto float drain 3/8" 80 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F24A Metal bowl w/sight gauge - twist drain 3/8" 80 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
06F28A Metal bowl w/sight gauge - auto float drain 3/8" 80 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
06F32A Poly bowl - metal guard, twist drain 1/2" 85 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F36A Poly bowl - metal guard, auto float drain 1/2" 85 10 (150) 228 (8.96)  71 (2.81) 57 (2.25)
06F34A Metal bowl w/sight gauge - twist drain 1/2" 85 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
06F38A Metal bowl w/sight gauge - auto float drain 1/2" 85 17 (250) 228 (8.96)  71 (2.81) 57 (2.25)
* For BSPP ports, add "1" to the end of the part number. For BSPT ports, add "2" to the end of the part number. Replace "A" with "Z" for adsorber filters, "B" for 5 micron elements.

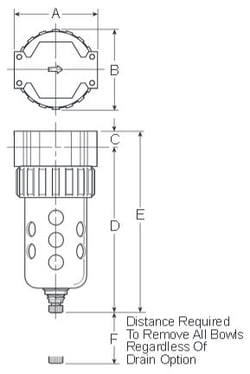

Prep-Air-II-06F-Compact-Filter-Dimensions


Service Kits and Accessories

Part Number Description
PS705P Bowl guard kit
PS722P Poly bowl kit / Automatic float drain
PS732P Poly bowl kit / Twist drain
PS726P Metal bowl kit / Automatic float drain
PS734P Metal bowl kit / Twist drain
PS723P Metal bowl w/sight gauge / automatic float drain
PS735P Metal bowl w/sight gauge / twist drain
PS702P 5μ filter element
PS701P 40μ filter element
PS731P Adsorber
PS743P Mounting bracket kit

Technical Specifications

Flow Capacity:

1/4": 53 SCFM

3/8": 80 SCFM

1/2": 85 SCFM
Operating Temperature: (Metal Bowl)  32°F to 175°F
  (Poly Bowl) 32°F to 125°F
Max. Supply Pressure: (Metal Bowl) 17 bar (250 psig)
  (Poly Bowl) 10 bar (150 psig)
Standard Filtration: 40 micron
Bowl Capacity:
 4.4 oz
Port Size: 1/4", 3/8", 1/2" (BSPP, BSPT, NPT)
Weight: 1.4 lb (0.6 kg)
