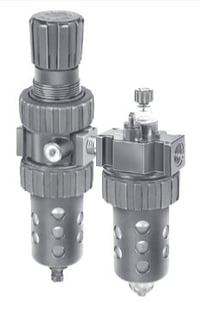

Prep-Air II Close Nippled Two-Unit Combinations | Parker 06G Compact Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |

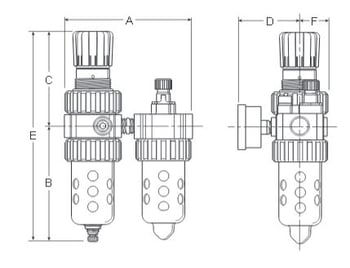

Height (E) mm (in) |
Width (A) mm (in) |
| 06G12A13A2B |
Poly bowl with metal bowl guard & twist drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06G16A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/4" | 264 (10.38) | 156 (6.13) |
| 06G14A13A4B | Metal bowl with sight gauge & twist drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06G18A13A4B | Metal bowl with sight gauge and automatic float drain filter |
1/4" | 264 (10.38) | 156 (6.13) |
| 06G22A13A2B | Poly bowl with metal bowl guard & twist drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06G26A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06G24A13A4B | Metal bowl with sight gauge & twist drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06G28A13A4B | Metal bowl with sight gauge and automatic float drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06G32A13A2B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06G36A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06G34A13A4B | Metal bowl with sight gauge & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |
| 06G38A13A4B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 156 (6.13) |

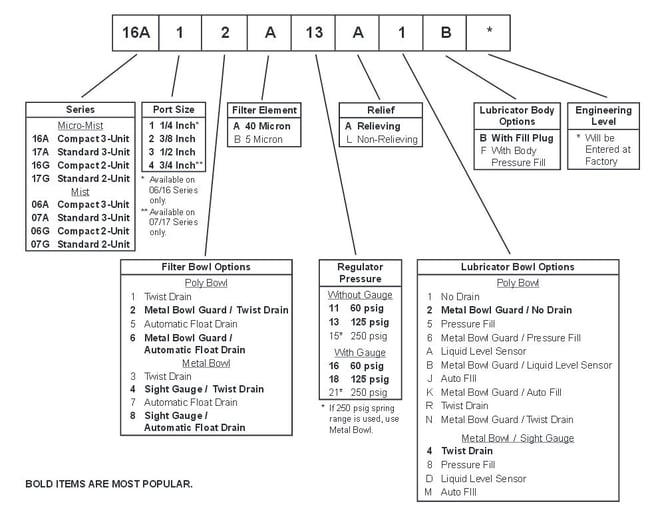

* For non-relieving regulator, replace "A" with "L". For 5 micron filter element, replace "A" with "B". See ordering information chart below for more pressure ranges and lubricator options.
