Prep-Air II Two-Unit Modular Combinations | Parker 06H Compact Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |

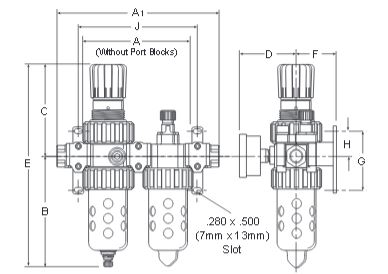

Height (E) mm (in) |
Width (A) mm (in) |
| 06H12A13A2B |
Poly bowl with metal bowl guard & twist drain filter |
1/4" | 264 (10.38) | 155 (6.10) |
| 06H16A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/4" | 264 (10.38) | 155 (6.10) |
| 06H14A13A4B | Metal bowl with sight gauge & twist drain filter |
1/4" | 264 (10.38) | 155 (6.10) |
| 06H18A13A4B | Metal bowl with sight gauge and automatic float drain filter |
1/4" | 264 (10.38) | 155 (6.10) |
| 06H22A13A2B | Poly bowl with metal bowl guard & twist drain filter | 3/8" | 264 (10.38) | 155 (6.10) |
| 06H26A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 3/8" | 264 (10.38) | 155 (6.10) |
| 06H24A13A4B | Metal bowl with sight gauge & twist drain filter | 3/8" | 264 (10.38) | 155 (6.10) |
| 06H28A13A4B | Metal bowl with sight gauge and automatic float drain filter | 3/8" | 264 (10.38) | 156 (6.13) |
| 06H32A13A2B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 155 (6.10) |
| 06H36A13A2B | Poly bowl with metal bowl guard & automatic float drain filter | 1/2" | 264 (10.38) | 155 (6.10) |
| 06H34A13A4B | Metal bowl with sight gauge & twist drain filter | 1/2" | 264 (10.38) | 155 (6.10) |
| 06H38A13A4B | Poly bowl with metal bowl guard & twist drain filter | 1/2" | 264 (10.38) | 155 (6.10) |

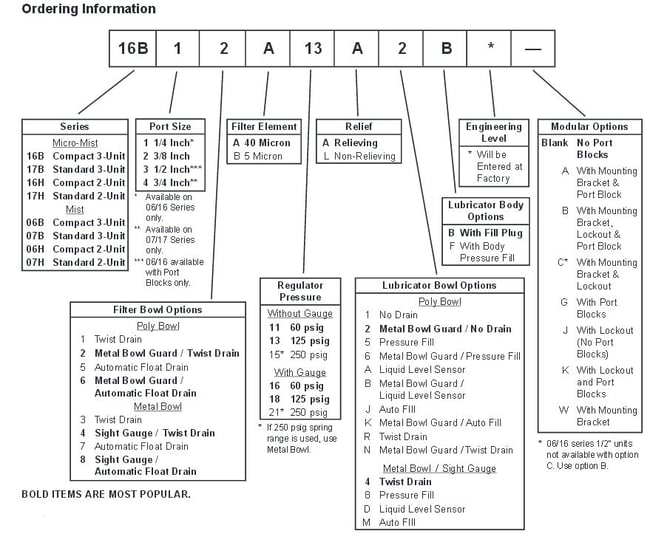

* For non-relieving regulator, replace "A" with "L". For 5 micron filter element, replace "A" with "B". For micro-mist, replace "06H" with "16H." See ordering information chart below for more pressure ranges and lubricator options.
WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
