Prep-Air II Lubricators | Parker 06L Compact Series

 Prep-Air-II-06L-Compact-Mist-Lubricator

FEATURES

  • 1/4, 3/8" or 1/2" ports
  • Proportional oil delivery over a wide range of air flows
  • Precision needle valve assures repeatable oil delivery and provides simple adjustment
  • Transparent sight dome for 360° visibility
  • Bowl can be filled while air line is under pressure

SYMBOLS

lubricator-symbol

Back to Prep-Air II Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

Depth (B)

mm (in)

06L12B

Poly bowl with metal guard, no drain

 1/4" 40 10.3 (150) 199 (7.82) 71 (2.81) 70 (2.74)
06L14B

Metal bowl with sight gauge, twist drain

1/4" 40 17.2 (250) 199 (7.82) 71 (2.81) 70 (2.74)
06L22B Poly bowl with metal guard, no drain 3/8" 60 10.3 (150) 199 (7.82) 71 (2.81) 70 (2.74)
06L24B Metal bowl with sight gauge, twist drain 3/8" 60 17.2 (250) 199 (7.82) 71 (2.81) 70 (2.74)
06L32B Poly bowl with metal guard, no drain 1/2" 90 10.3 (150) 199 (7.82) 71 (2.81) 70 (2.74)
06L34B Metal bowl with sight gauge, twist drain 1/2" 90 17.2 (250) 199 (7.82) 71 (2.81) 70 (2.74)

*Place a "1" after the part number for BSPP ports. Place a "2" after the part number for BSPT ports. See ordering information chart below for more bowl and fill options.

Suggested lubricant: F442 oil - petroleum-based oil of 100 to 200 viscosity at 100°F. Do not use oils with additives, compounded oils containing solvents, graphite, detergents or synthetic oils.

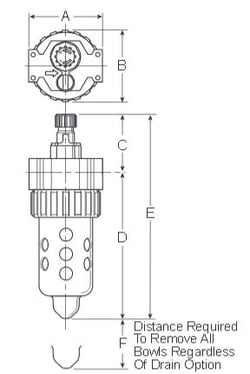

Prep-Air-II-06L-Compact-Mist-Lubricator-Dimensions


F= 57 mm (2.25 in)

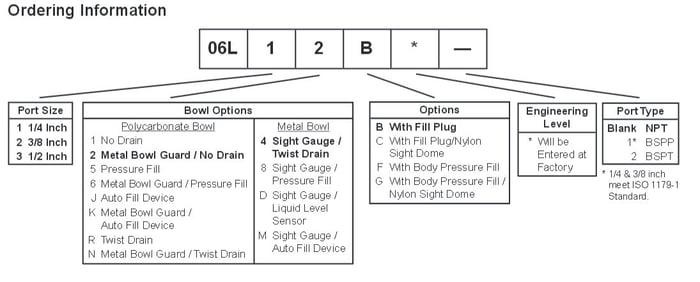

Prep-Air-II-06L-Compact-Mist-Lubricator-Ordering

Service Kits and Accessories

Part Number Description
PS746P Bowl kit - poly bowl, no drain
PS729P Bowl kit - metal bowl, twist drain (with sight gauge)
PS718P Lubricator service kit
PS797P Liquid level sensor kit
PS716P Pressure fill adapter kit
PS743P Mounting bracket kit

Technical Specifications

Flow Capacity:

1/4": 40 SCFM

3/8": 60 SCFM

1/2": 90 SCFM

Operating Temperature:

32°F to 125°F - poly bowl

32°F to 175°F - metal bowl

Max. Supply Pressure:

17.2 bar (250 psig) - metal bowl

10.3 bar (150 psig) - poly bowl

Port Size: 1/4", 3/8", 1/2" (NPT, BSPP, BSPT)
Bowl Capacity: 2.9 oz
Weight: 1.2 lb (0.5 kg)
