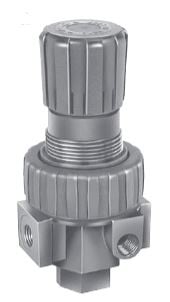

Prep-Air II Regulators | Parker 06R Compact Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

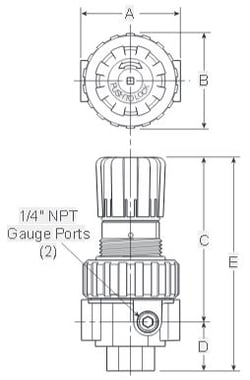

Height (E) mm (in) |
Width (A) mm (in) |
Depth (B) mm (in) |
| 06R113A |
Relieving, without gauge |
1/4" | 53 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |
| 06R118A |
Relieving, with 160 psi gauge |
1/4" | 53 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |
| 06R213A | Relieving, without gauge |
3/8" | 60 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |
| 06R218A | Relieving, with 160 psi gauge |
3/8" | 60 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |
| 06R313A | Relieving, without gauge | 1/2" | 75 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |
| 06R318A | Relieving, with 160 psi gauge | 1/2" | 75 | 17.2 (250) | 154 (6.08) | 71 (2.81) | 70 (2.74) |

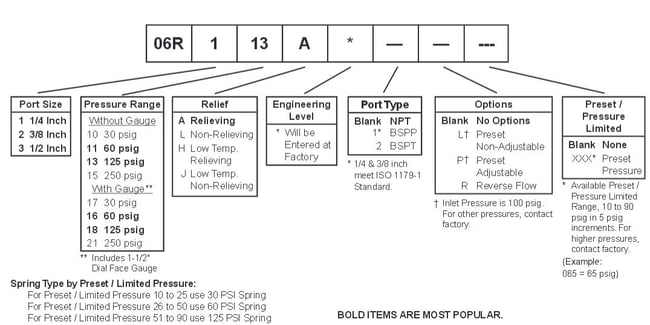

* For non-relieving regulator, replace "A" with "L". Add a "1" to the end of the part number for BSPP ports. Add a "2" to the end of the part number for BSPT ports. See ordering information chart below for other pressure ranges and relief options.
Service Kits and Accessories
| Part Number | Description |
| K4520N14060 | 60 psig (0 to 4.1 bar) |
| K4520N14160 | 160 psig (0 to 11.0 bar) |
| K4520N14300 | 300 psig (0 to 20.0 bar) |
| P04079B | Panel mount nuts - metal |
| P04082 | Panel mount nuts - plastic |
| PS715P | Bonnet assembly kit |
| PS737P | Tamperproof kit |
| PS707P | Mounting bracket kit |
Technical Specifications
| Flow Capacity: |
1/4": 53 SCFM 3/8": 60 SCFM 1/2": 75 SCFM |
| Operating Temperature: |
32°F to 125°F (Low Temp: -4°F to 125°F) |
| Max. Supply Pressure: | 17.2 bar (250 psig) |
| Port Size: | 1/4", 3/8", 1/2" (NPT, BSPP, BSPT) |
| Weight: | 1.6 lbs (0.7 kg) |
