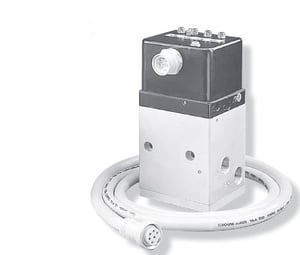

 par-15-series-proportional-regulator

FEATURES

  • Full flow capacity for direct air device operation
  • Instantly repeatable response
  • Air-saving design, close crossover, non-constant bleed
  • Wide range of discrete output pressures
  • Compatible with computers and programmable controllers with digital solid state relay outputs
  • Meets NEMA 4 standard (6-pin option only)

Back to Proportional Regulators Main Page

Part Numbers


Part Number  Description

Port Size

Flow Capacity
(scfm)

Max. Operating Pressure

(psig)
W21540172

No enclosure, 24V/60Hz voltage/cycle

  1/2" body, 1/8" pilot
 275 scfm inlet to outlet, 225 scfm outlet to exhaust
 150 inlet, 6 output
W21540175

No enclosure, 12VDC voltage/cycle

  1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21540179

No enclosure, 24VDC voltage/cyclet

 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21540183 No enclosure, 110/120V /50/60HZ voltage/cycle 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21542172 Quadrant 2 6-Pin NEMA 4 enclosure, 24V/60Hz voltage/cycle
 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21542175 Quadrant 2 6-Pin NEMA 4 enclosure, 12VDC voltage/cycle 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21542179 Quadrant 2 6-Pin NEMA 4 enclosure, 24VDC voltage/cyclet
 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output
W21542183 Quadrant 2 6-Pin NEMA 4 enclosure, 110/120V /50/60HZ voltage/cycle
 1/2" body, 1/8" pilot 275 scfm inlet to outlet, 225 scfm outlet to exhaust 150 inlet, 6 output

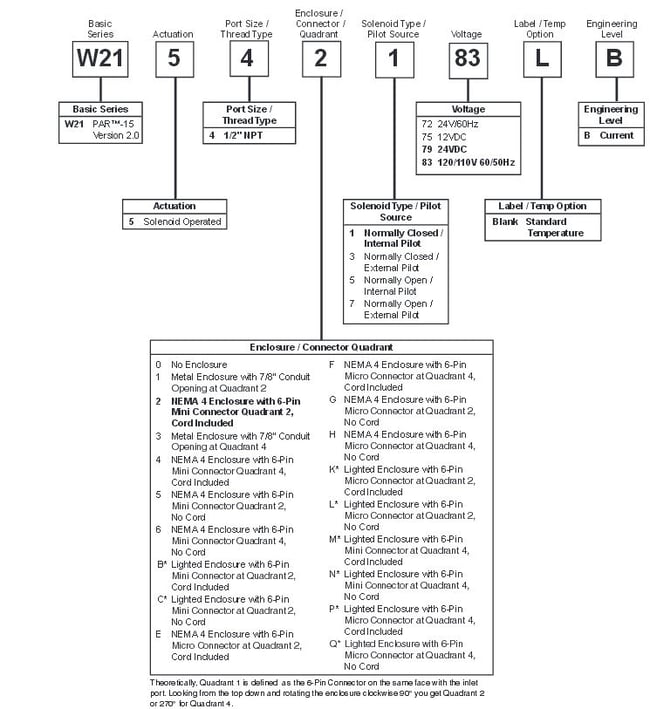

par-15-series-ordering

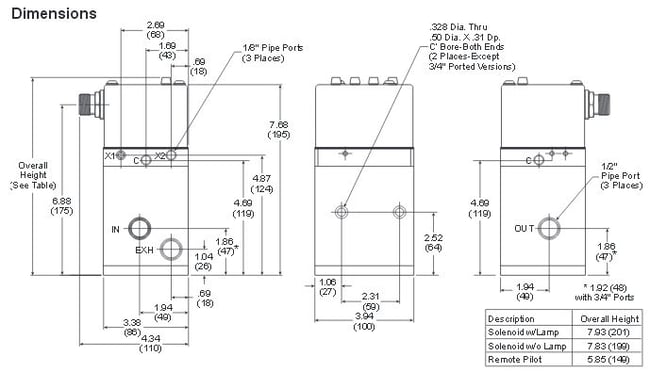

par-15-series-dimensions

Service Kits

Part Number Description
K352413B Piston, poppet assembly, rubber seals and gaskets


Technical Specifications

Flow Capacity: 275 scfm inlet to outlet, 225 scfm outlet to exhaust
Voltage Range:
 +10%  to -10% of rating
Max. Operating Pressure
 150 inlet, 6 output
Port Size: 1/2" body, 1/8" pilot
Temperature Range (Ambient):
 32°F to 140°F
Output Response:
 20 milliseconds
Weight:

6.3 lbs (2.9 kg) - no enclosure

8.0 lbs (3.6 kg) - w/ 6-pin plug & cord
