Stainless Steel Piggybacks | Parker PB548 Miniature Knob Series
 |
FEATURES
SYMBOLS
|
Part Numbers
| Part Number* | Description |
Port Size |
Flow |
Max. Bar (psig) |

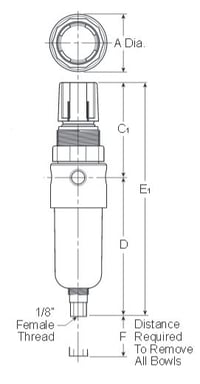

Height (E1) mm (in) |
Width (A) mm (in) |
| PB548-02DHCSS |
NPT port, 0-125 psig, relieving |
1/4" | 12 | 20.7 (300) | 159 (6.26) | 40 (1.56) |
| PB548-02DHCKSS |
NPT port, 0-125 psig, non-relieving |
1/4" | 12 | 20.7 (300) | 159 (6.26) | 40 (1.56) |
| PB548G02DHCSS | BSPP port, 0-125 psig, relieving | 1/4" | 12 | 20.7 (300) | 159 (6.26) | 40 (1.56) |
| PB548G02DHCKSS | BSPP port, 0-125 psig, non-relieving | 1/4" | 12 | 20.7 (300) | 159 (6.26) | 40 (1.56) |
Service Kits and Accessories
| Part Number | Description |
| RK504SY-SS | Automatic pulse drain kit |
| SA600Y7-1SS | Manual twist drain - small |
| SAP05481 | Manual twist drain - large |
| 161X57-SS | Panel mount bracket - stainless |
| R05X51-SS | Panel mount nut - stainless |
| R05X51-P | Panel mount nut - plastic |
| 616Y28-SS | Pipe nipple - 1/4" |
| RK549YSS | Service kit - relieving |
| RK548YSS | Service kit - non-relieving |
| K4515N14160SS | 160 PSIG, 1-1/2" face gauge |
Technical Specifications
| Flow Capacity: |
12 SCFM |
| Operating Temperature*: | 0°F to 150°F |
| Max. Pressure Rating: | 20.7 bar (300 psig) |
| Port Size: | 1/4" (BSPP, NPT) |
| Weight: | 0.6 lb (0.27 kg) |
