Stainless Steel Piggybacks | Parker PB558 Miniature All Metal Series

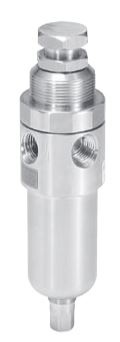

 SS-FRLs-PB558-Miniature-Piggyback

FEATURES

  • 1/4" ports (NPT, BSPP)
  • 1/8" female threaded drain
  • Large diaphragm to valve area ratio for precise regulation and high flow capacity
  • Meets NACE specifications MR-01-75/ISO 15156
  • Stainless steel construction handles most corrosive environments

SYMBOLS

Filter-Regulator-Symbols

Back to Stainless Steel FRLs Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

PB558-02DHCSS

NPT port, 0-125 psig, relieving

 1/4" 12 20.7 (300) 147 (5.80) 40 (1.56)
PB558-02DHCKSS

NPT port, 0-125 psig, non-relieving

1/4" 12 20.7 (300) 147 (5.80) 40 (1.56)
PB558G02DHCSS BSPP port, 0-125 psig, relieving 1/4" 12 20.7 (300) 147 (5.80) 40 (1.56)
PB558G02DHCKSS BSPP port, 0-125 psig, non-relieving 1/4" 12 20.7 (300) 147 (5.80) 40 (1.56)
* For other pressure ranges, replace "C" with "A" for 0-25 PSIG, or "B" for 0-60 PSIG. For 5 micron filter element, replace "H" with "G."

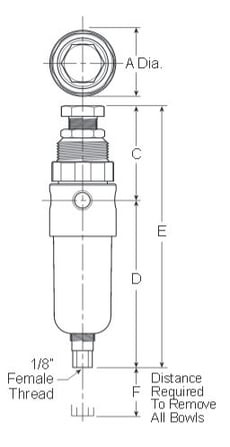

SS-FRLs-PB558-Miniature-Piggyback-Dimensions


Service Kits and Accessories

Part Number Description
RK504SY-SS Automatic pulse drain kit
SA600Y7-1SS Manual twist drain - small
SAP05481 Manual twist drain - large
161X57-SS Panel mount bracket - stainless
R05X51-SS Panel mount nut - stainless
R05X51-P Panel mount nut - plastic
616Y28-SS Pipe nipple - 1/4"
RK549YSS Service kit - relieving
RK548YSS Service kit - non-relieving
K4515N14160SS 160 PSIG, 1-1/2" face gauge

Technical Specifications

Flow Capacity:

12 SCFM

Operating Temperature*: 0°F to 180°F
Max. Pressure Rating: 20.7 bar (300 psig)
Port Size: 1/4" (BSPP, NPT)
Weight: 0.6 lb (0.27 kg)
* Air must be dry enough to avoid ice formation at temperatures below 32°F

Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
