Stainless Steel Filters | Parker PF504 Miniature Series

 SS-FRLs-PF504-Miniature-Filter

FEATURES

  • 1/4" ports (NPT, BSPP)
  • 1/8" female threaded drain
  • 20 micron filter element
  • Fluorocarbon seals standard
  • Meets NACE specifications MR-01-75/ISO 15156
  • Stainless steel construction handles most corrosive environments

SYMBOLS

Twist-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Twist Drain Auto Drain

Back to Stainless Steel FRLs Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

F

mm (in)

PF504-02DHSS

Stainless steel bowl, NPT port, manual twist drain

 1/4" 23 20.7 (300) 102 (4.00)  40 (1.56) 40 (1.58)
PF504-02DHRSS

Stainless steel bowl, NPT port, automatic pulse drain

 1/4" 23 12 (175) 102 (4.00)  40 (1.56) 40 (1.58)
PF504G02DHSS Stainless steel bowl, BSPP port, manual twist drain  1/4" 23 20.7 (300) 102 (4.00)  40 (1.56) 40 (1.58)
PF504G02DHRSS Stainless steel bowl, BSPP port, automatic pulse drain 1/4" 23 12 (175) 102 (4.00)  40 (1.56)
40 (1.58)
* For 5 micron filter element, replace "H" with "G."

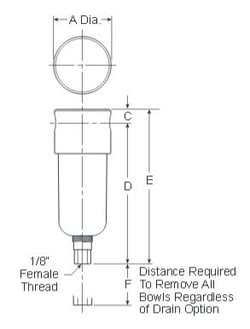

SS-FRLs-PF504-Miniature-Filter-Dimensions




Service Kits and Accessories

Part Number Description
RK504SY-SS Drain kit / Automatic pulse drain
SA600Y7-1SS
Drain kit (small) / Twist drain
SAP05481 Drain kit (large) / Twist drain
EK504VY 5μ filter element
EK504Y 20μ filter element
616Y28-SS Pipe nipple

Technical Specifications

Flow Capacity:

23 SCFM

Operating Temperature: (Auto) 32°F to 150°F
  (Manual) 0°F to 180°F
Max. Pressure Rating: (Auto) 12 bar (175 psig)
  (Manual) 20.7 bar (300 psig)
Standard Filtration: 20 micron
Bowl Capacity:
1 oz
Port Size: 1/4" (BSPP, NPT)
Weight: 0.6 lbs (0.27 kg)
