Stainless Steel Regulators | Parker PR364 Miniature Knob Series

 SS-FRLs-PR364-Miniature-Regulator

FEATURES

  • 1/4" ports (NPT, BSPP)
  • Large diaphragm to valve area ratio for precise regulation and high flow capacity
  • Meets NACE specifications MR-01-75/ISO 15156
  • Stainless steel construction handles most corrosive environments

SYMBOLS

Regulator-Symbol-1

Back to Stainless Steel FRLs Main Page

Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)
PR364-02CSS

NPT port, 0-125 psig, relieving

 1/4" 12 20.7 (300) 78 (3.06) 40 (1.56)
PR364-02CKSS

NPT port, 0-125 psig, non-relieving

1/4" 12 20.7 (300) 78 (3.06) 40 (1.56)
PR364G02CSS BSPP port, 0-125 psig, relieving 1/4" 12 20.7 (300) 78 (3.06) 40 (1.56)
PR364G02CKSS BSPP port, 0-125 psig, non-relieving 1/4" 12 20.7 (300) 78 (3.06) 40 (1.56)
* For other pressure ranges, replace "C" with "A" for 0-25 PSIG, or "B" for 0-60 PSIG.

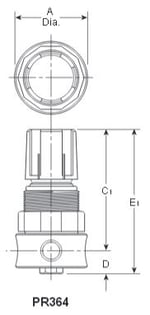

SS-FRLs-PR364-Miniature-Regulator-Dimensions


Service Kits and Accessories

Part Number Description
161X57-SS Panel mount bracket - stainless
R05X51-SS

Panel mount nut - stainless
R05X51-P Panel mount nut - plastic
616Y28-SS Pipe nipple - 1/4"
RKR364YSS Service kit - relieving
RKR364KYSS Service kit - non-relieving
K4515N14160SS 160 PSIG, 1-1/2" face gauge

Technical Specifications

Flow Capacity:

12 SCFM
Operating Temperature*: 0°F to 150°F
Max. Pressure Rating: 20.7 bar (300 psig)
Port Size: 1/4" (BSPP, NPT)
Weight: 0.5 lb (0.23 kg)
* Air must be dry enough to avoid ice formation at temperatures below 32°F
