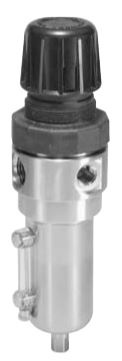

Stainless Steel Filter/Regulators | Parker PB11 Standard Knob Series

SS-FRLs-PB11-Standard-Piggyback

FEATURES

1/2" ports (NPT, BSPP)
1/8" female threaded drain
Large diaphragm to valve area ratio for precise regulation and high flow capacity
Meets NACE specifications MR-01-75/ISO 15156
Low temperature version available
Stainless steel construction handles most corrosive environments

SYMBOLS

Filter-Regulator-Symbols

Back to Stainless Steel FRLs Main Page

Part Numbers

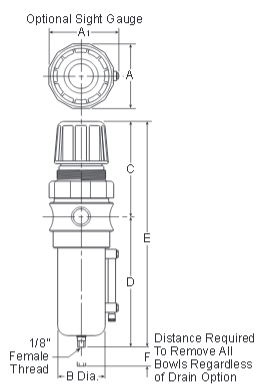

Part Number*	Description	Port Size	Flow (scfm)	Max. Bar (psig)	Height (E) mm (in)	Width (A₁) mm (in)
PB11-04WJCSS	NPT port, 0-125 psig, relieving	1/2"	72	20.7 (300)	218 (8.59)	64 (2.50)
PB11-04WJCKSS	NPT port, 0-125 psig, non-relieving	1/2"	72	20.7 (300)	218 (8.59)	64 (2.50)
PB11G04WJCSS	BSPP port, 0-125 psig, relieving	1/2"	72	20.7 (300)	218 (8.59)	64 (2.50)
PB11G04WJCKSS	BSPP port, 0-125 psig, non-relieving	1/2"	72	20.7 (300)	218 (8.59)	64 (2.50)

* For other pressure ranges, replace "C" with "B" for 0-60 PSIG, or "D" for 0-250 PSIG. For 5 micron filter element, replace "J" with "C."

Service Kits and Accessories

Part Number	Description
SA10MDSS	Automatic float drain kit
SA600Y7-1SS	Manual twist drain kit - small
SAP05481	Manual twist drain kit - large
R10Y57-SS	Panel mount bracket - stainless
R01X51-SS	Panel mount nut - stainless
R01X51-P	Panel mount nut - plastic
616A28-SS	Pipe nipple - 1/2"
RKR10YSS	Service kit - relieving
RKR10KYSS	Service kit - non-relieving
K4520N14160SS	160 PSIG, 2" face gauge

Technical Specifications

Flow Capacity:	72 SCFM
Operating Temperature*:	0°F to 150°F
Max. Pressure Rating:	20.7 bar (300 psig)
Port Size:	1/2" (BSPP, NPT)
Weight:	2.42 lb (1.09 kg)

* Air must be dry enough to avoid ice formation at temperatures below 32°F
