Stainless Steel Filters | Parker PF10 Standard Series

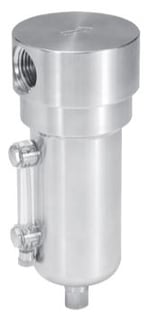

 SS-FRLs-PF10-Standard-Filter

FEATURES

  • 1/2" ports (NPT, BSPP)
  • 1/8" female threaded drain
  • 40 micron filter element
  • Fluorocarbon seals standard
  • Meets NACE specifications MR-01-75/ISO 15156
  • Stainless steel construction handles most corrosive environments

SYMBOLS

Twist-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Twist Drain Auto Drain

Back to Stainless Steel FRLs Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

F

mm (in)

PF10-04WJSS

Stainless steel bowl, NPT port, manual twist drain

 1/2" 70 17.2 (250) 141 (5.56) 60 (2.38) 54 (2.12)
PF10-04WJRSS

Stainless steel bowl, NPT port, automatic float drain

1/2" 70 12 (175) 141 (5.56) 60 (2.38) 54 (2.12)
PF10G04WJSS Stainless steel bowl, BSPP port, manual twist drain 1/2" 70 17.2 (250) 141 (5.56) 60 (2.38) 54 (2.12)
PF10G04WJRSS Stainless steel bowl, BSPP port, automatic float drain 1/2" 70 12 (175) 141 (5.56) 60 (2.38)
54 (2.12)
* For 5 micron filter element, replace "J" with "G."

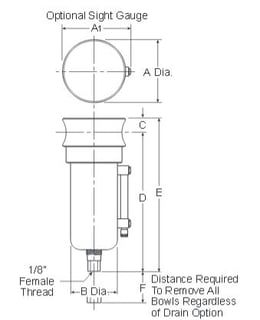

SS-FRLs-PF10-Standard-Filter-Dimensions



Service Kits and Accessories

Part Number Description
SA10MDSS Drain kit / Automatic float drain
SA600Y7-1SS
Drain kit (small) / Twist drain
SAP05481 Drain kit (large) / Twist drain
EK55G 5μ filter element
EK55J 40μ filter element
616A28-SS Pipe nipple - 1/2"

Technical Specifications

Flow Capacity:

70 SCFM

Operating Temperature: (Auto) 32°F to 150°F
  (Manual) 0°F to 150°F
Max. Pressure Rating: (Auto) 12 bar (175 psig)
  (Manual) 17.2 bar (250 psig)
Standard Filtration: 40 micron
Bowl Capacity:
4 oz
Port Size: 1/2" (BSPP, NPT)
Weight: 1.9 lb (0.85 kg)
