Stainless Steel Lubricators | Parker PL10 Standard Series

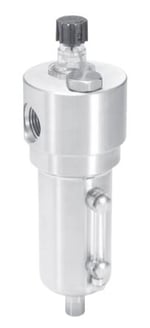

 SS-FRLs-PL10-Standard-Lubricator

FEATURES

  • 1/2" ports (NPT, BSPP)
  • 1/8" female threaded drain
  • Fluorocarbon seals standard
  • Fillable under pressure
  • Meets NACE specifications MR-01-75/ISO 15156
  • Stainless steel construction handles most corrosive environments

SYMBOLS

lubricator-symbol

Back to Stainless Steel FRLs Main Page


Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E)

mm (in)

Width (A)

mm (in)

F

mm (in)

PL10-04WSS

Stainless steel bowl w/sight gauge, NPT port, manual twist drain

 1/2" 100 17.2 (250) 194 (7.62) 60 (2.36) 89 (3.50)
PF10G04WJSS Stainless steel bowl w/sight gauge, BSPP port, manual twist drain 1/2" 100 17.2 (250) 194 (7.62) 60 (2.36) 89 (3.50)
* For stainless steel bowl without sight gauge, replace "W" with "D."

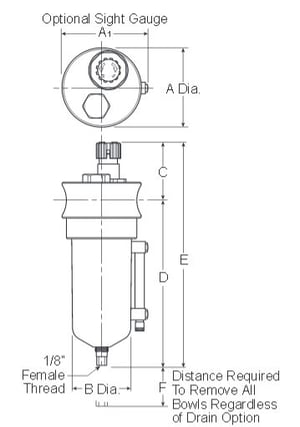

SS-FRLs-PL10-Standard-Lubricator-Dimensions



Service Kits and Accessories

Part Number Description
SA600Y7-1SS
Drain kit (small) / Twist drain
SAP05481 Drain kit (large) / Twist drain
RKL10SS Sight dome kit - old
PS740N Sight dome kit - new
616A28-SS Pipe nipple - 1/2"

Technical Specifications

Flow Capacity:

100 SCFM

Operating Temperature: (With sight gauge) 0°F to 150°F
  (Without sight gauge) 0°F to 150°F
Max. Pressure Rating: (With sight gauge) 17.2 bar (250 psig)
  (Without sight gauge) 20.7 bar (300 psig)
Bowl Capacity:
4 oz
Port Size: 1/2" (BSPP, NPT)
Weight: 1.9 lb (0.85 kg)
