Stainless Steel Regulators | Parker PR11 Standard T-Handle Series

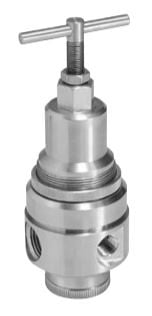

 SS-FRLs-PR11-Standard-Regulator

FEATURES

  • 1/2" ports (NPT, BSPP)
  • Large diaphragm to valve area ratio for precise regulation and high flow capacity
  • Meets NACE specifications MR-01-75/ISO 15156
  • Low temperature version available
  • Stainless steel construction handles most corrosive environments

SYMBOLS

Regulator-Symbol-1

Back to Stainless Steel FRLs Main Page

Part Numbers



Part Number*  Description

Port Size

Flow
(scfm)

Max. Bar (psig)

Height (E1)

mm (in)

Width (A)

mm (in)
PR11-04CSS

NPT port, 0-125 psig, relieving

 1/2" 80 20.7 (300) 154 (6.08) 60 (2.34)
PR11-04CKSS

NPT port, 0-125 psig, non-relieving

1/2" 80 20.7 (300) 154 (6.08) 60 (2.34)
PR11G04CSS BSPP port, 0-125 psig, relieving 1/2" 80 20.7 (300) 154 (6.08) 60 (2.34)
PR11G04CKSS BSPP port, 0-125 psig, non-relieving 1/2" 80 20.7 (300) 154 (6.08) 60 (2.34)
* For other pressure ranges, replace "C" with "B" for 0-60 PSIG, or "D" for 0-250 PSIG.

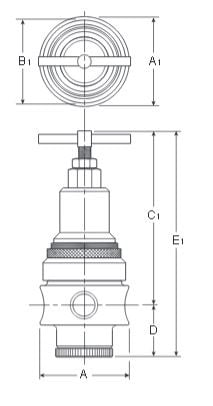

SS-FRLs-PR11-Standard-Regulator-Dimensions


Service Kits and Accessories

Part Number Description
R10Y57-SS Panel mount bracket - stainless
R01X51-SS

Panel mount nut - stainless
R01X51-P Panel mount nut - plastic
616A28-SS Pipe nipple - 1/2"
RKR10YSS Service kit - relieving
RKR10KYSS Service kit - non-relieving
K4520N14160SS 160 PSIG, 2" face gauge

Technical Specifications

Flow Capacity:

80 SCFM
Operating Temperature*: 0°F to 180°F
Max. Pressure Rating: 20.7 bar (300 psig)
Port Size: 1/2" (BSPP, NPT)
Weight: 1.79 lb (0.81 kg)
* Air must be dry enough to avoid ice formation at temperatures below 32°F
