Parker Air Saver Selection Guide

FOR HELP WITH USING AIR SAVERS
IN YOUR SPECIFIC APPLICATION,
CONTACT OUR ENGINEERS:
Parker ASV200

5.3 cfm
M5 Thread
44-116 PSI
Pulse
Pilot
ASV200

 Parker ASC50015.9 cfm
1/8" Thread
29-101.5 PSI
Pulse/Cont.
DC24V
ASC500		 Parker ASO50015.9 cfm
1/8" Thread
29-72.5 PSI
Pulse/Cont.
DC24V
ASO500		 Parker ASV200070.6 cfm
3/8" Thread
0-116 PSI
Pulse
Pilot
ASV2000		 Parker ASV5000176.6 cfm
1/2" Thread
0-116 PSI
Pulse
Pilot
ASV5000		 Parker ASV13000459.1 cfm
1" Thread
0-116 PSI
Pulse
Pilot
ASV13000		 Parker ASV15000529.7 cfm
1-1/4" Thread
0-116 PSI
Pulse
Pilot
ASV15000		 Parker Air Saver for blow guns - HASV08R1,300 cfm
1/4" Thread
50.8-116 PSI
Pulse/Cont.
For Hand Held
HASV08R

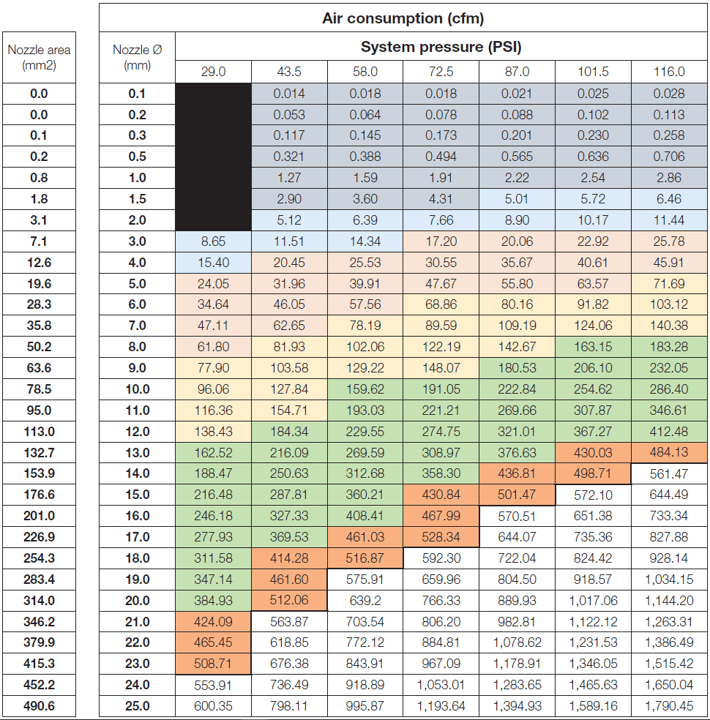

Selection by two variables: System operation pressure and required air consumption of a nozzle (or set of nozzles) to be controlled by one Air Saver.

The background color of the table cell corresponds to the Air Saver in the color key.		 air-savers-color-code.png

  • Reduced performance flow capacity of 10% is applied
  • Minimum operating pressure: 43.5 - 116 PSI for ASV200; 0 - 116 PSI for ASV2000, ASV5000, ASV13000 and ASV15000; 29 - 101.5 PSI for ASC500; and 29 - 72.5 PSI for SAO500.
  • Minimum pilot air pressure: 43.5 - 116 PSI for ASV2000, ASV5000, ASV13000 AND ASV15000; ASV200, ASC500 AND ASO500 have an internat pilot.
  • External pilot of 43.5 - 116 PSI is required to ensure proper operation of ASV200, ASV2000, ASV5000, ASV13000 and ASV15000
