Air Saver | Parker ASV15000-AA




For help with using Air Savers
in your specific application,
contact our engineers:





What is an Air Saver?

An air valve that converts constant flow of air to pulsating air (Pulsing Air Valve)

In open-ended pneumatic applications, compressed air consumption can be reduced by up to 50%, while performing the same amount of work.



Air Savers FAQ

Air Saver Savings Chart



ASV15000 Specifications


FLOW
CFM
@ 72.5 PSI
PORT OPERATING
TEMP

(A)
PRESSURE
PSI
PILOT PRESSURE
PSI
GREASE

PORT

TYPE

PART NUMBER
529.7 1-1/4" 23-122° F 0-116 43.5-116 Petrolatum
(B), (C), (D)
NPT WPASV15000-AA-92
529.7 1-1.4" 23-122° F 0-116 43.5-116 Petrolatum
(B), (C), (D)
BSPP WPASV15000-AA-42

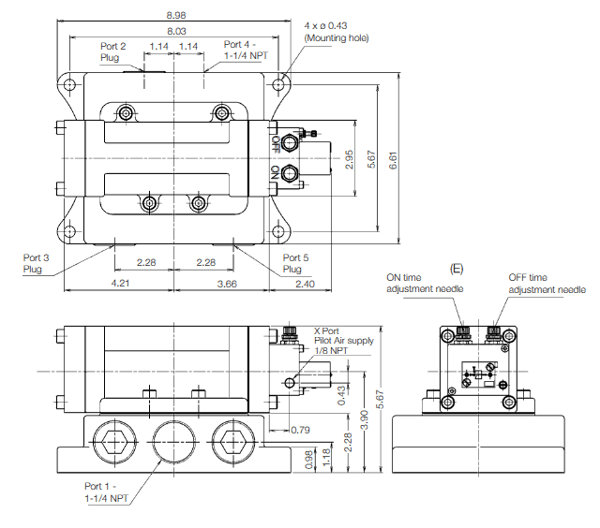

ASV15000-AA Dimensions



Ports:

  • Port 1: Supply port (Compressor side)
  • Port 2: Plug (1-1/4)
  • Port 3: Plug (1-1/4)
  • Port 4: Output port (Blow nozzle side)
  • Port 5: Plug (1-1/4)
  • Port X: 1/8 NPT pilot air supply (>43.5 psi is required)

Notes:

  • (A) Use with dry air only. When temperature of the valve is below 41°F (5°C), completely dry air must be supplied to prevent freezing.
  • (B) Air Saver units with "WP" prefix are suitable for most painting applications. Test before using if in direct contact with painted surface.
  • (C) If test in painting application fails, try cycling Air Saver unit for 48 hours and repeat test.
  • (D) Do not use with clear coat applications.
  • (E) Adjustable to maximum frequency of 1Hz
