Air Saver | Parker ASV2000-AA

 Parker ASV2000-AA



For help with using Air Savers
in your specific application,
contact our engineers:



What is an Air Saver?

An air valve that converts constant flow of air to pulsating air (Pulsing Air Valve)

In open-ended pneumatic applications, compressed air consumption can be reduced by up to 50%, while performing the same amount of work.



Air Savers FAQ



ASV2000 Ordering Information


FLOW
CFM
@ 72.5 PSI		 PORT OPERATING
TEMP
(A)		 PRESSURE
PSI		 PILOT PRESSURE
PSI		 GREASE

PORT

TYPE

 PART NUMBER
70.6 3/8" 23-122° F 0-116 43.5-116 Standard NPT ASV2000-AA-97
70.6 3/8" 23-122° F 0-116 43.5-116 Standard BSPP ASV2000-AA-17
70.6 3/8" 23-122° F 0-116 43.5-116 Petrolatum
(B), (C), (D)		 NPT WPASV2000-AA-97
70.6 3/8" 23-122° F 0-116 43.5-116 Petrolatum
(B), (C), (D)		 BSPP WPASV2000-AA-17



ASV2000-AA Dimensions

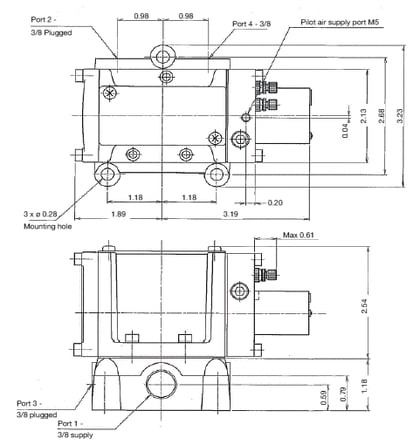

Parker ASV2000-AA Dimensions 1

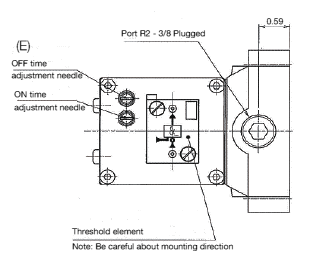

Parker ASV2000-AA Dimensions 2


Ports:

  • Port 1: Supply port (Compressor side)
  • Port 2: Plugged
  • Port 3: Plugged
  • Port 4: Output port (Blow nozzle side)
  • Port R2: Plugged
  • Port X: M5 pilot air supply (>43.5 psi is required)

Notes:

  • (A) Use with dry air only. When temperature of the valve is below 41°F (5°C), completely dry air must be supplied to prevent freezing.
  • (B) Air Saver units with "WP" prefix are suitable for most painting applications. Test before using if in direct contact with painted surface.
  • (C) If test in painting application fails, try cycling Air Saver unit for 48 hours and repeat test.
  • (D) Do not use with clear coat applications.
  • (E) Adjustable to maximum frequency of 5Hz
