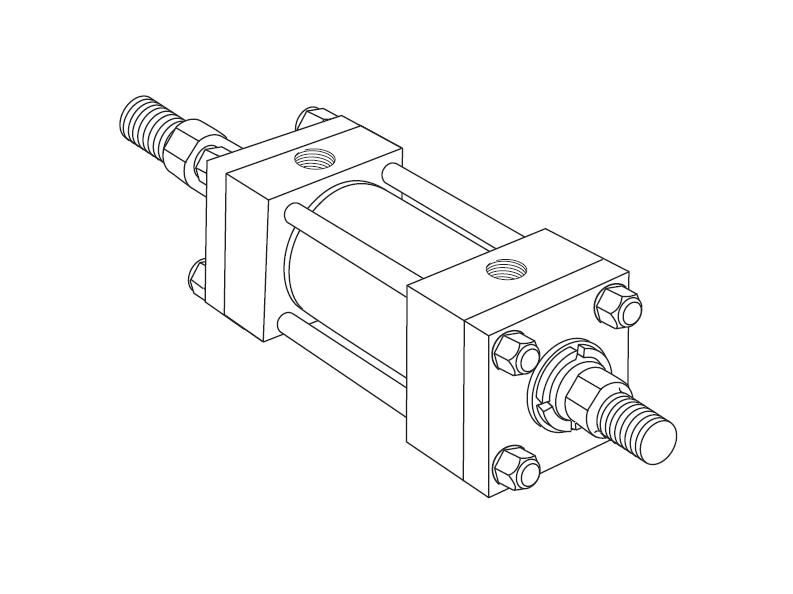

    Double Rod Cylinder Style KT
    For Parker Series 2H Cylinders

    1.50" & 8.00" Bore
    series-2h-mounting-style-kt
    series-2H-style-K-dimensions

    Double Rod End Mounting Styles

    See Mounting Groups page in Section H for guidance on double rod end cylinder mounting style selection.

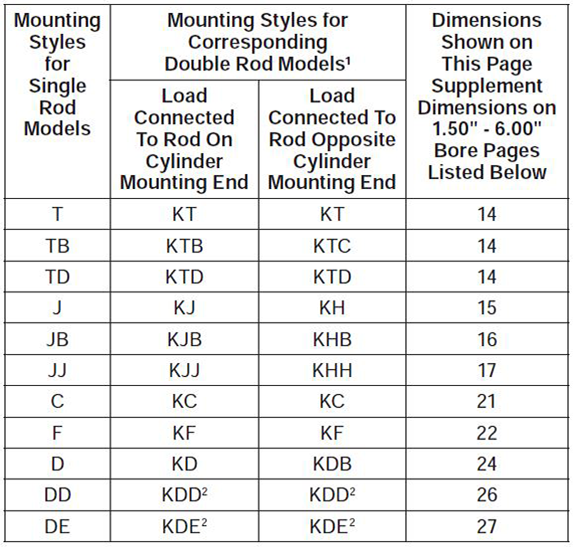

    series-2H-style-K-dimensions chart 1

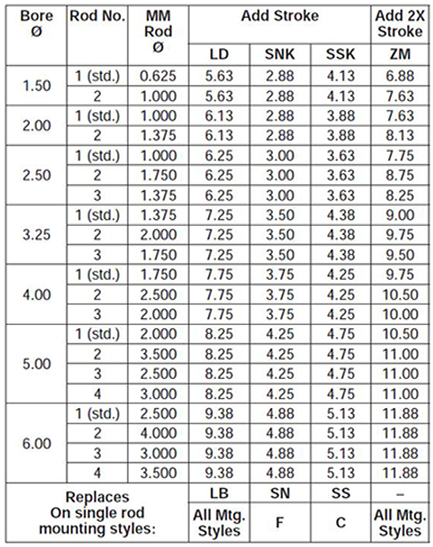

    series-2H-style-K-dimensions chart 2

    1Connect load to piston rod without 'V' notch. If only one end of the Double Rod Cylinder is to be cushioned, be sure to clearly specify which end this will be.
    2Specify XI dimension for Styles DD & DE from #1 rod end (without 'V' notch).

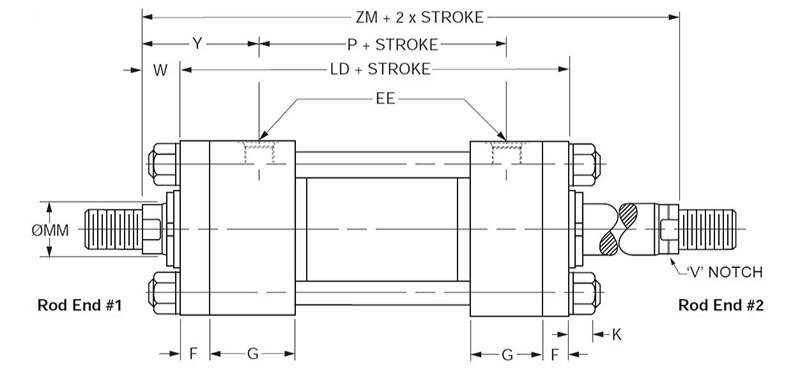

    How to Use Double Rod Cylinder Dimension Drawings

    To determine dimensions for a double rod cylinder, first refer to the desired single rod mounting style cylinder shown on preceding pages of this catalog. (See table above.) After selecting necessary dimensions from that drawing, return to this page supplement the single rod dimensions with those shown on drawing at right and dimension table below. Note that double rod cylinders have a head (Dim. G) at both ends and that dimension LH replaces LG. The double rod dimensions differ from, or are in addition to those for single rod cylinders shown on preceding pages and provide the information needed to completely dimension a double rod cylinder. On a double rod cylinder where the two rod ends are different, be sure to clearly state which rod end is to be assembled at which end. Port position 1 is standard. If other than standard, specify pos. 2, 3 or 4 when viewed from rod end #1 only. See port position information in Section H.
