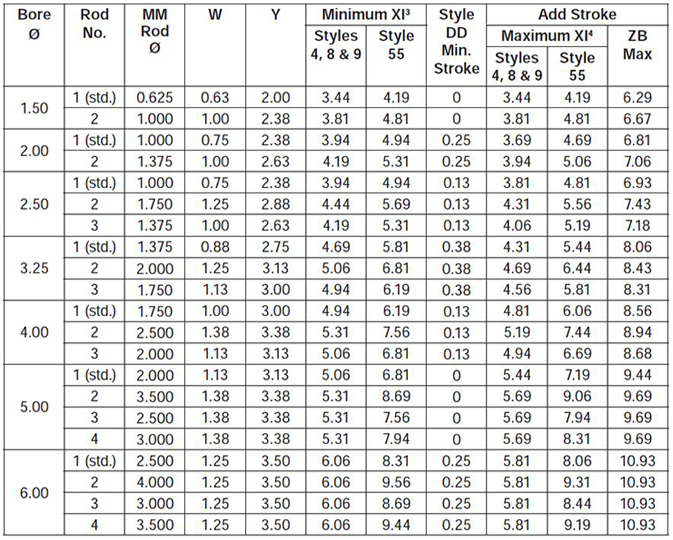

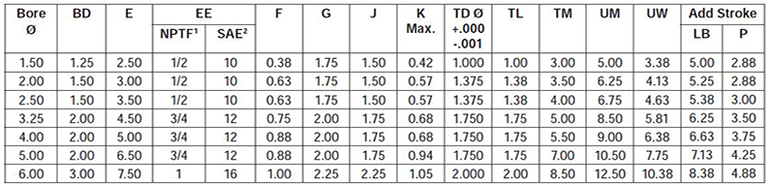

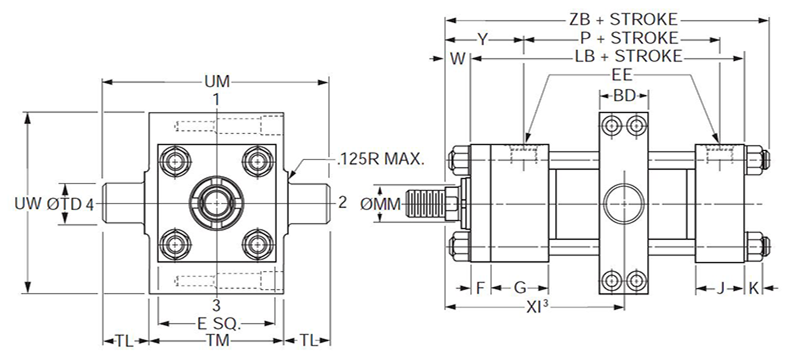

NFPA Style MT4
1.50" & 6.00" Bore
1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
3Dimension XI to be specified by customer. Reference point for rod end Style 55 is end of piston rod.
4Dimensions shown are valid for standard W and WG dimension.
