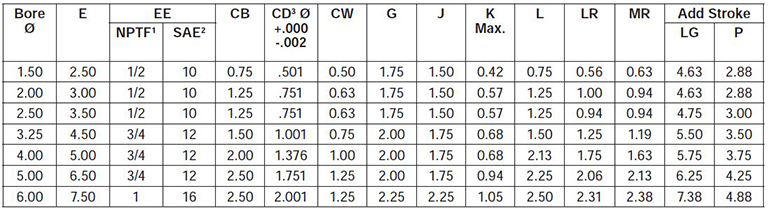

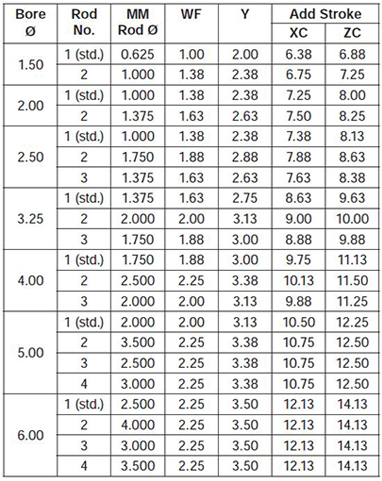

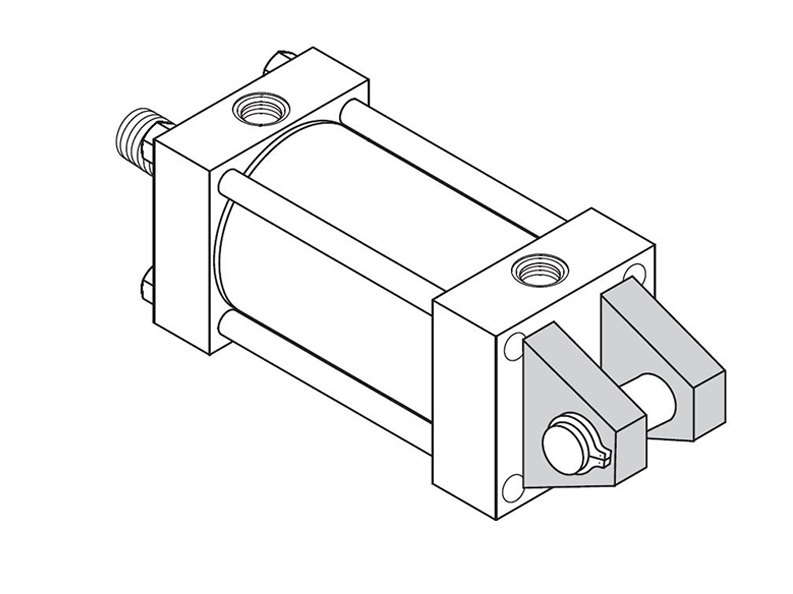

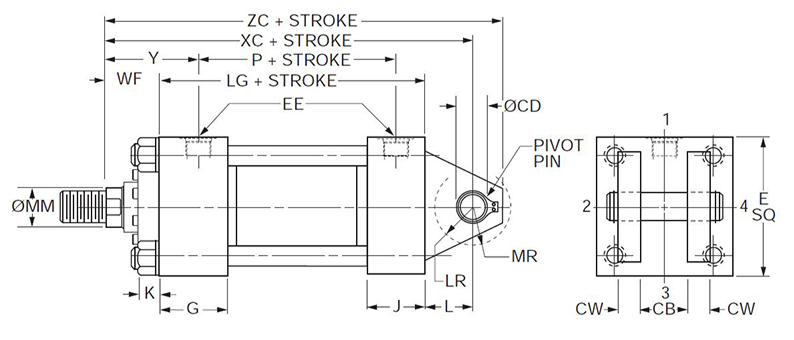

NFPA Style MP1
1.50" & 8.00" Bore
1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
3Diameter CD is Pin Diameter.
