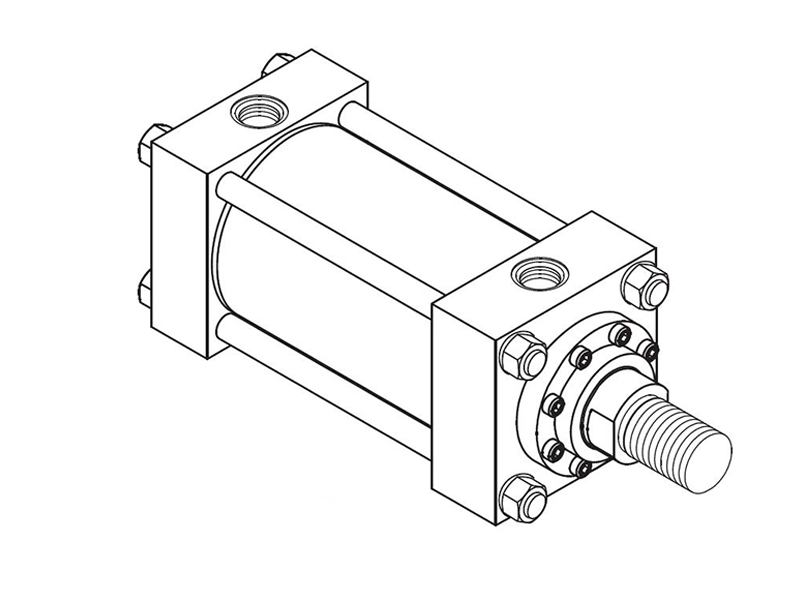

NFPA Style MS4
1.50" & 8.00" Bore

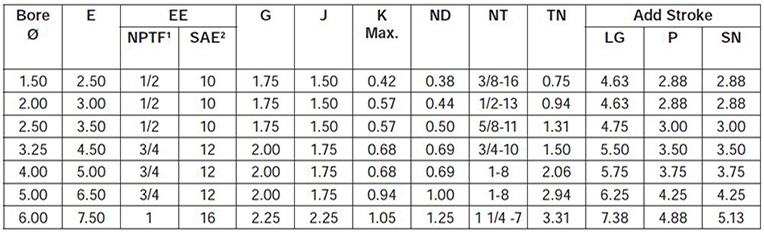

1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY, AND PROPERTY DAMAGE.
This document and other information from Motion & Flow Products, Inc (MFCP), the Parker Hannifin Corporation, and other MFCP's suppliers provide product and/or system options for further investigation by users having expertise. It is important that you analyze all aspects of your application, including the consequences of any failure, and review the information concerning the product or system in the current product catalog. Due to the variety of operating conditions and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance, safety, and warning requirements of the application are met.
The products described herein, including without limitation, product features, specifications, designs, availability, and pricing, are subject to change by MFCP at any time without notice.
