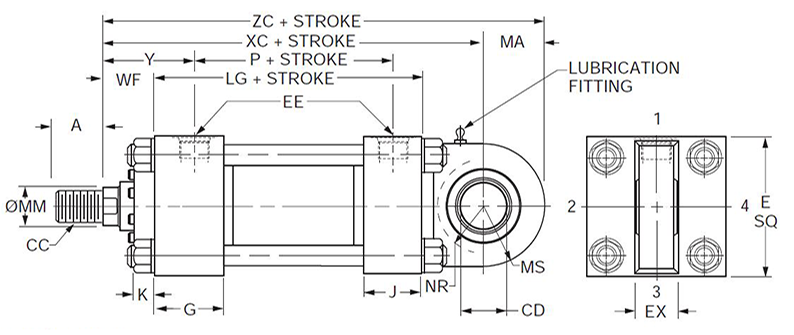

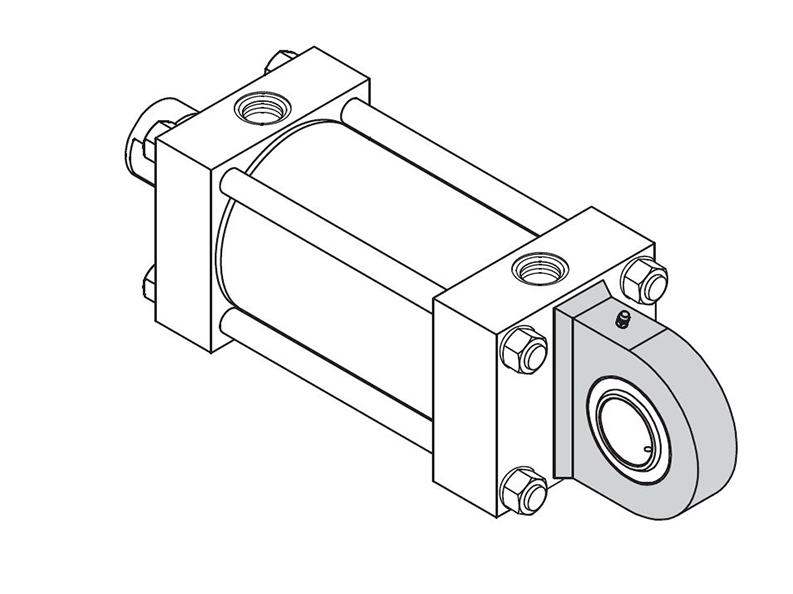

1.50" & 6.00" Bore

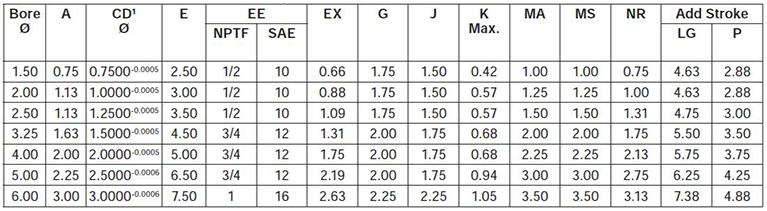

1Diameter CD is hole diameter.
2Maximum operating pressure at 4:1 design factor is based on tensile strength of material. Pressure ratings are based on standard bearing ratings.

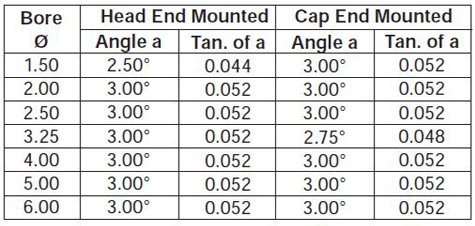

Note: Dimension X is the maximum off center mounting of the cylinder. To determine dimension X for various stroke lengths multiply the distance between pivot pin holes by tangent of angle a. For extended position use X = XL + 2X stroke.

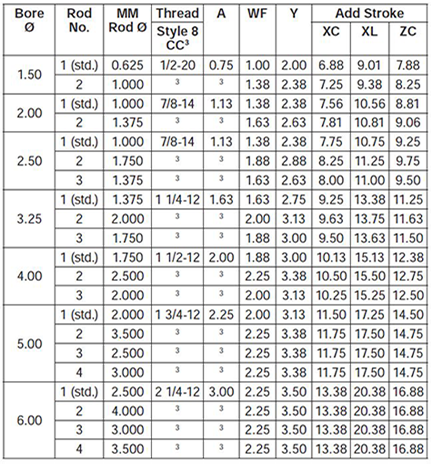

3To match pin diameter in rod eye and cap, when an oversize rod is required, specify rod end style ‘3’, ‘CC’ thread and ‘A’ thread length for the standard rod diameter (Rod No. 1 for the bore), and ‘WF’ for the oversize rod. Order the rod eye and clevis bracket for the required bore size from the tables on the Style SE Spherical Bearing Accessories page.
