Side Lugs Mounting Style C
For Parker Series 3H 10in to 20in Cylinders

NFPA Style MS2
10.00" & 14.00" Bore

series-3h-large-bore-mounting-style-c

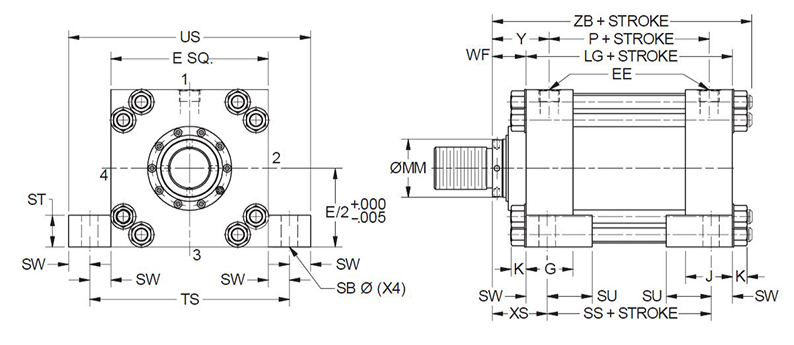

series-3H-large-bore-style-C-dimensions

Style C – Dimensional and Mounting Data

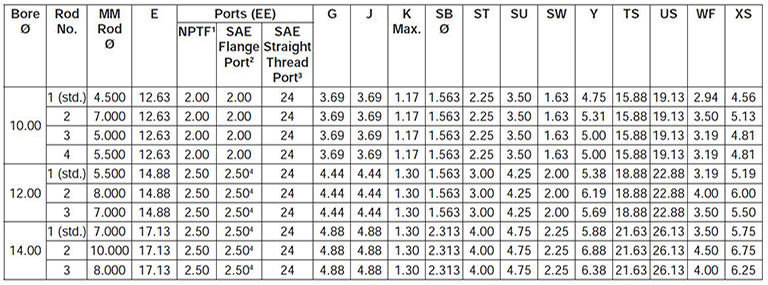

series-3H-large-bore-style-C-dimensions chart 1

1NPTF ports are available at no extra charge.
2Optional SAE flange ports may be specified – flange to be supplied by customer. See Optional SAE Flange Port Pattern table for dimensions.
3SAE straight thread ports are standard and are indicated by port number.
42.50 SAE flange port is rated at 2500 psi

Style C - Dimensional and Mounting Data (cont.)

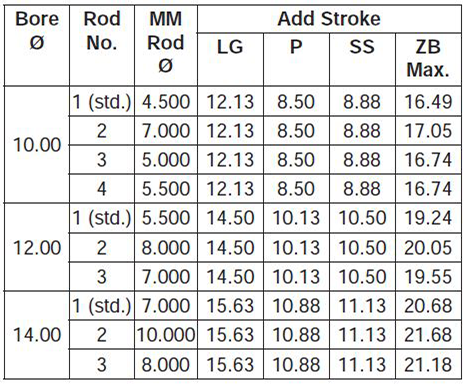

series-3H-large-bore-style-C-dimensions chart 2

Optional SAE Flange Port Pattern

3H-large-bore-style-sae-flange-port pattern

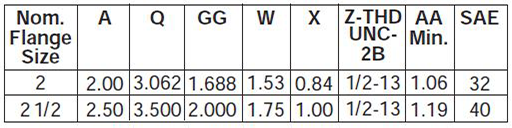

series-3H-large-bore-style-C-dimensions chart 3
