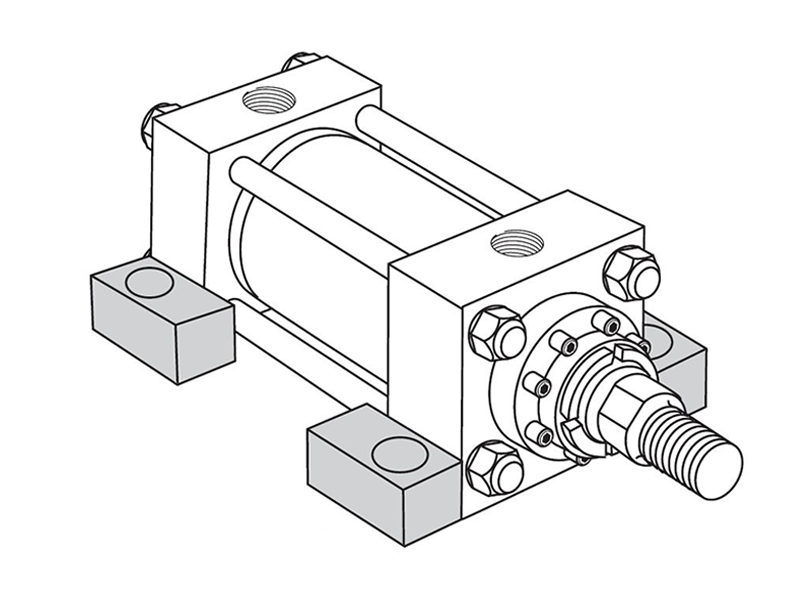

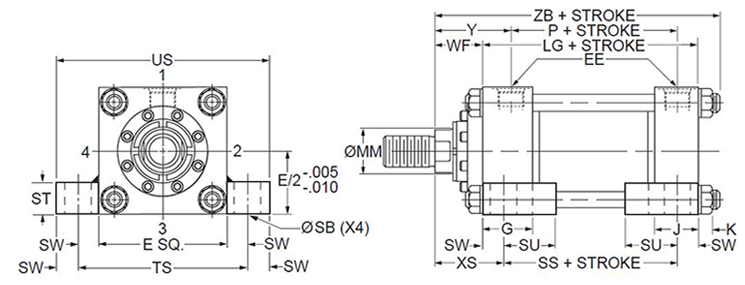

NFPA Style MS2
7.00" & 8.00" Bore

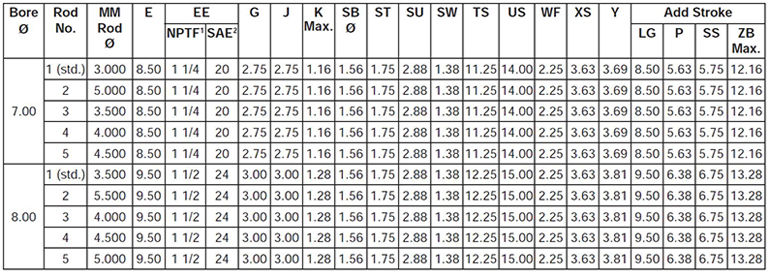

1NPTF ports are available at no extra charge.
2SAE straight thread ports are standard and are indicated by port number.
