Parker Series 3HB Cylinders

2hb-3hb-diagram

Series 3HB Design Improvements Increase Reliability

A) Primary Seal – Polyurethane Tri-Lip Rod Seal is a proven leak proof design – completely self-compensating and self-relieving to withstand variations and conform to mechanical deflection that may occur. Alternative seal materials are
available to suit your application.

B) Secondary Seal – Polyurethane Rod Wiper –wipes clean any oil film adhering to the rod on the extend stroke and cleans the rod on the return stroke.

C) Rod Gland Assembly – Bronze gland is externally removable without cylinder disassembly. Long inboard bearing surface is ahead of the seals assuring lubrication by cylinder operating fluid.

Parker Crown Wiper™ for Series 2HB 1.50" - 6.00" and 3HB 7.00" & 8.00" bore

crown-wiper

For environments that contain fine abrasive particulate specify the Crown Wiper option. The Crown Wiper is a proven superior alternative to piston rod end boots or metallic wipers that can ingest particulate. It has a sharp leading edge to effectively clean the piston rod and a beveled shape to prevent contaminant intrusion by channeling it away from the gland. It also acts as a secondary seal to wipe clean any oil film adhering to the rod on the extend stroke.

Parker Series 3HB Heavy Duty Hydraulic Cylinder

Series 2HB 1.50"-6.00" and 3HB 7.00" & 8.00" bore cylinders are envelope pressure rated at 3,000 psi across the entire bore size and mounting style range. Non-tie rod construction with bolt-on gland and robust Tri-Lip rod sealing system offer superior performance. Head and cap are bolted to flanges that are threaded to each end of the cylinder body and offer several lifetime ownership advantages.

2hb-3hb-header

  • Improved fatigue life compared to welded flange construction
  • Easier to service than tie rod styles
  • Clean appearance improves machine aesthetics
  • Lower weight in longer strokes



Standard Specifications

  • Heavy Duty Service – ANSI/(NFPA) T3.6.7R3 - 2009
    Specifications and Mounting Dimension Standards
  • Standard Construction – Bolted
  • Nominal Pressure – 3000 psi1
  • Standard Fluid – Hydraulic Oil
  • Standard Temperature – -10°F to +165°F2
  • Bore Diameters – 1.50" through 8.00"
  • Piston Rod Diameter – 0.625" through 5.500"
  • Mounting Styles – 11 standard styles at various application ratings
  • Strokes – Available in any practical stroke length
    See @H & EH Family Model Number / How to Order Page for Series @HB & #HB minimum stroke lengths
  • Cushions – Optional at either end or both ends of stroke. “Float Check” standard at cap end of 1.50" - 6.00" bore.
  • Rod Ends – Four Standard Choices – Specials to Order

1 If hydraulic operating pressure exceeds 3000 psi, send application data for engineering evaluation and recommendation. See Section H for actual design factors.

2 See Section H for higher temperature service.

In line with Parker's policy of continuing product improvement, specifications on this page are subject to change.

Note: Series 2HB and 3HB Hydraulic Cylinders fully meet ANSI/(NFPA) T3.6.7R3 - 2009 Specifications and Mounting Dimension Standards for Square Head Industrial Fluid Power Cylinders.

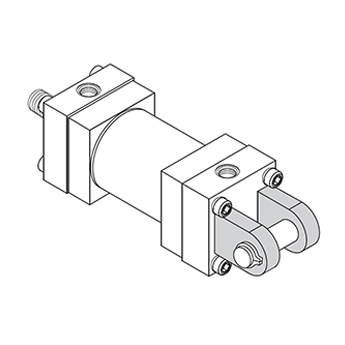

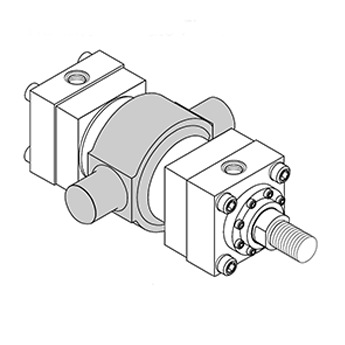

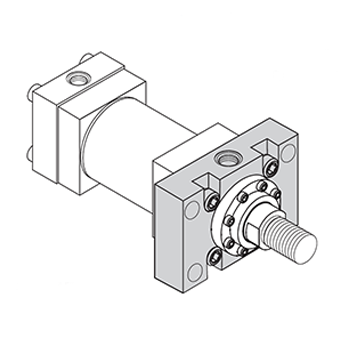

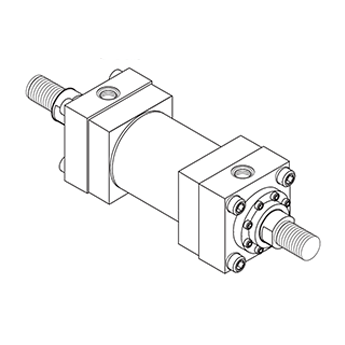

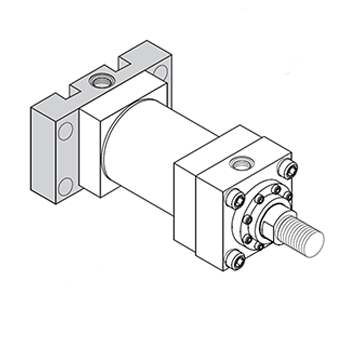

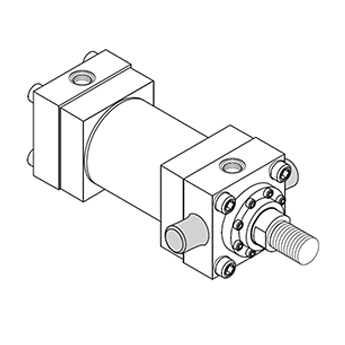

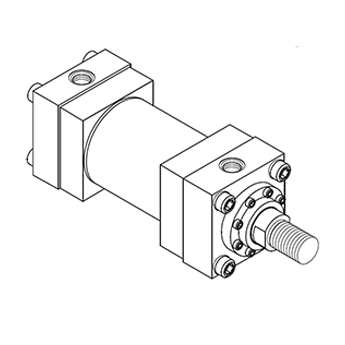

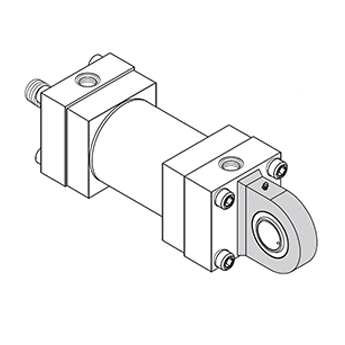

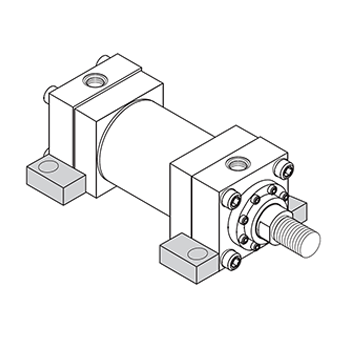

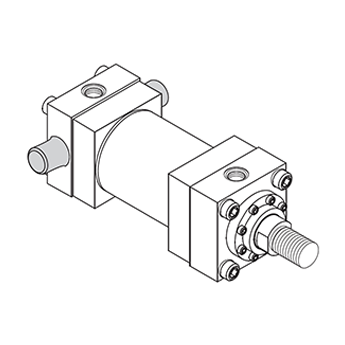

Available Mounting Styles

Piston Rod End Dimensions



thread-style-8-4-chart

“Special” Thread Style 3
Special thread, extension, rod eye, blank, etc., are also available.
To order, specify “Style 3” and give desired dimensions for KK, A, W or WF.
If otherwise special, furnish dimensioned sketch.



thread-style-9-55-chart

“Special” Thread Style 3
Special thread, extension, rod eye, blank, etc., are also available.
To order, specify “Style 3” and give desired dimensions for KK, A, W or WF.
If otherwise special, furnish dimensioned sketch.

1 For special WG dimension, specify “Style 3” and give desired dimension for WG. For other changes, place “S” in the
model code, and describe rod end with dimensioned sketch.
2 Style 9 stroke restrictions may apply. See Style 9 Minimum Stroke Table on How to Order page for details.
