CAN Flow Sensors for Parker SensoControl Service Master Plus

Parker CAN Flow Sensors provide the ability to measure pressure, temperature and flow from a single test point in a hydraulic system. Constructed of light-weight aluminum, they are designed to be used with a wide variety of hydraulic fluids. Parker SensControl design minimizes the effect of viscosity changes. SensoControl CAN flow sensors are provided with a choice of PD, PDP or EMA style diagnostic ports.

SensoControl CAN flow meters can only be used with the Parker Service Master Plus.
SensoControl analog flow meters, which can be used with the whole SensoControl family of meters, are also available.

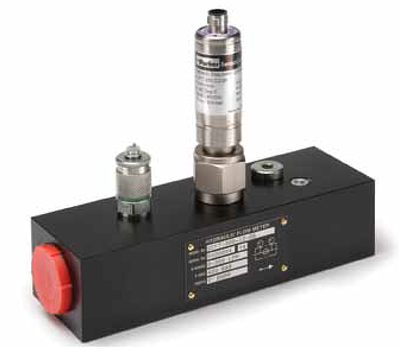

ParkerSenso Control CAN Flow Meter
  • Four measurement ranges: 0.2 to 16.0 gpm
  • Accuracy of 1% FS or IR
  • Measures pressure, temperature and flow
  • Supplied with diagnostic coupling and
  • temperature measurement port











Parker SensoControl Meter Selection

SensoControl CAN Flow Meter Part Numbers & Technical Data

  SCFT-0004-##-CAN SCFT-0116-##-CAN SCFT-0380-##-CAN SCFT-5160-##-CAN
 MEASURING RANGE 0.2 – 4 gpm
(1 – 15 l/min)		 1 – 16. gpm
(4 – 6.0 l/min)		 3 – 80 gpm
(10 – 300 l/min)		 5 – 16.0 gpm
(20 – 6.00 l/min)
 ACCURACCY @ 21 cSt* 1% FS 1% IR 1% IR 1% IR
 OPERATING PRESSURE (PSI) 6,000 6,000 6,000 6,000
 PORT CONNECTION 1/2" BSPP 3/4" BSPP 1" BSPP 1-1/4" BSPP
 PRESSURE DROP @ FS 21 cSt (PSI) 21 21 58 72
 RESPONSE TIME (ms) 50 50 50 50
 LENGTH (in) 5.35 7.48 7.48 8.35
 WIDTH (in) 1.45 2.44 2.44 2.44
 HEIGHT (in) 5.91 6.46 6.61 7.20

(*) Percentage of full scale (FS) or indicated reading (IR) - as indicated

"##" in the part number represents: TA = PD Style; PTA = PDP Style; TEMA3 = EMA3 Style (Female)
