Analog Flow Sensors for Parker SensoControl Meters

Parker analog flow sensors provide the ability to measure pressure, temperature and flow from a single test point in a hydraulic system. Constructed of light-weight aluminum, they are designed to be used with a wide variety of hydraulic fluids. Parker flow meter design minimizes the effect of viscosity changes. Parker analog flow sensors are provided with a choice of PD, PDP or EMA style diagnostic ports and are designed to be used with Parker Serviceman Plus™, the Parker Service Master Easy, and Parker Service Master Plus diagnostic meters. Parker SensoControl CAN Flow Meters are also available.

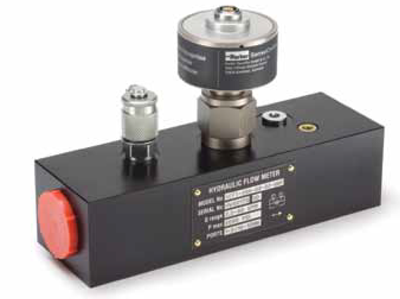

SensoControl Analog Flow Meter
  • Four measurement ranges: 0.2 to 16.0 gpm
  • Accuracy of 1% FS
  • Measures pressure, temperature and flow
  • Supplied with diagnostic coupling and
  • temperature measurement port








Parker SensoControl Meter Selection

SensoControl Analog Flow Sensor Part Numbers

 MEASURING RANGE WITH PD NIPPLE WITH PDP NIPPLE WITH EMA NIPPLE INLET/OUTLET
PORT CONFIG		 LENGTH
(in)		 HEIGHT
(in)		 WIDTH
(in)
0.2 – 4 gpm (1 – 15 l/min) SCFT-0004-PD SCFT-0004-PDP SCFT-0004-EMA 3/4-16 ORB 5.35 4.61 1.46
1 – 16 gpm (4 – 6 l/min) SCFT-0116-PD SCFT-0116-PDP SCFT-0116-EMA 1 1/16-12 ORB 7.48 5.12 2.44
3 – 80 gpm (10 – 300 l/min) SCFT-0380-PD SCFT-0380-PDP SCFT-0380-EMA 1 5/16-12 ORB 7.48 5.28 2.44
5 – 16 gpm (20 – 600 l/min) SCFT-5160-PD SCFT-5160-PDP SCFT-5160-EMA 1 5/8-12 ORB 8.35 5.91 2.44
