Analog Pressure Transducers for Parker SensoControl Meters

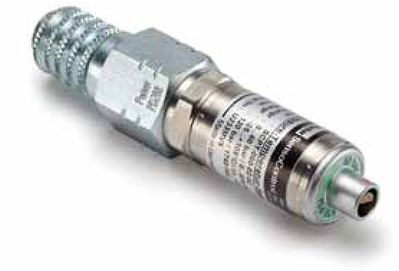

SensoControl Analog Pressure Transducer
  • Five measurement ranges: Vacuum to 8,750 PSI
  • Color coded for easy identification
  • Corrosion resistant stainless steel housing
  • Accuracy of 0.50% Max Full Scale
  • Available with PD, PDP or EMA style diagnostic couplings







Parker SensoControl Meter Selection



SensoControl Analog Transducers | Part Numbers & Technical Data

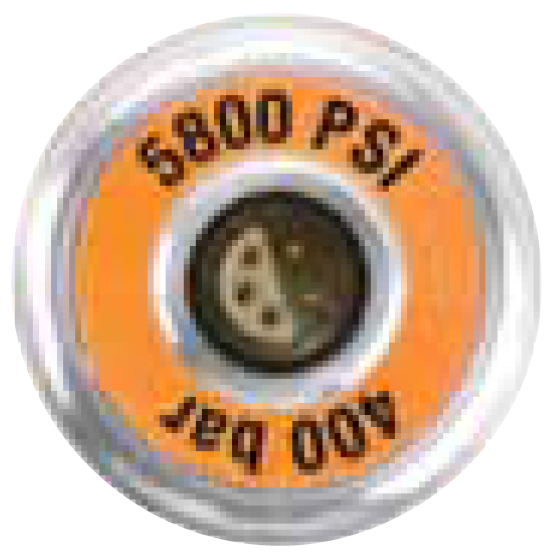

  SensoControl Analog Pressure Transducer 235 PSI Senso Control Analog Pressure Transducer 870 PSI SensoControl Analog Transducer 2175 PSI SensoControl Analog Transducer 5800 PSI SensoControl Analog Transducer 8700 PSI
Color Code Blue Green Yellow Orange Red
Pressure Range (PSI) -14.5 - 235 0 - 870 0- 2175 0 - 5800 0 - 8700(1)
Temperature Range (°F) -13 - 221 -13 - 221 -13 - 221 -13 - 221 -13 - 221
Max. Overload Pressure (PSI) 290 1450 3625 14500 14500
Output Signal (V) -0.2 - 2 0 - 3 0 - 3 0 - 3 0 - 3
Response Time (ms) 1 1 1 1 1
Excitation Voltage (V DC) 7 - 12 7 - 12 7 - 12 7 - 12 7 - 12
Accuracy (Max) 0.50% FS 0.50% FS 0.50% FS 0.50% FS 0.50% FS
(1) Maximum rated pressure for PD series couplers is 6,000 PSI. Maximum rated pressure for EMA series couplers is 9,000 PSI.

"##" in the part number represents: TA = PD Style; PTA = PDP Style; TEMA3 = EMA3 Style (Female)

Materials of Construction

Transducer: Stainless Steel
Diaphragm: Stainless Steel
Coupler: Chromium-6 Free Plated Steel
Seal: Fluorocarbon

Temperature Range

Working: -4°F - 185°F
Fluid: -13°F - 221°F
Storage: -40°F - 257°F

 Output

Accuracy (max): 050% FS
Load: 2 mΩ
Response Time: < 1 ms
Output Signal to Noise: <01% FS
Resonant Freequency: 100kHz

Electrical Supply Requirements

Excitation Voltage: 7 - 12 V (DC)
Permissible Ripple: +/- 2% ss
Current Requirement: 5 mA

Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
