CAN Pressure Transducers for Parker SensoControl Meters

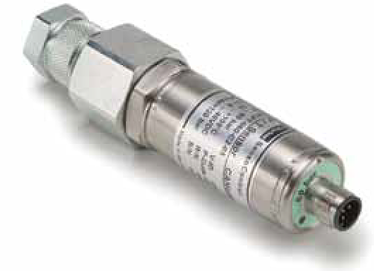

SensoControl Analog Pressure Transducer
  • Five measurement ranges: Vacuum to 8,750 PSI
  • Compatible for use with the Parker Service Master Plus only
  • Color coded for easy identification
  • Corrosion resistant stainless steel housing
  • Accuracy of 0.50% Max Full Scale
  • Available with PD, PDP or EMA style diagnostic couplings





Download Catalog



SensoControl CAN Transducers | Part Numbers & Technical Data



SensoControl Analog Transducer 235 PSI

PD##-0100-CAN

SensoControl Analog Transducer 870 PSI

PD##-0600-CAN

SensoControl Analog Transducer 2175 PSI

PD##-1500-CAN

SensoControl Analog Transducer 5800 PSI

PD##-4000-CAN

SensoControl Analog Transducer 8700 PSI

PD##-6000-CAN
Color Code Blue Green Yellow Orange Red
Pressure Range (PSI) -14.5 - 235 0 - 870 0- 2175 0 - 5800 0 - 8700(1)
Temperature Range (°F) -13 - 221 -13 - 221 -13 - 221 -13 - 221 -13 - 221
Max. Overload Pressure (PSI) 434 1740 4350 11600 17400
Response Time (ms) 1 1 1 1 1
Excitation Voltage (V DC) 8 - 40 8 - 40 8 - 40 8 - 40 8 - 40
Accuracy (Max) 0.50% FS 0.50% FS 0.50% FS 0.50% FS 0.50% FS
(1) Maximum rated pressure for PD series couplers is 6,000 PSI. Maximum rated pressure for EMA series couplers is 9,000 PSI.

"##" in the part number represents: TA = PD Style; PTA = PDP Style; TEMA3 = EMA3 Style (Female)

Excitation Voltage: 8-40 VDC
Electrical Connection: 5 pin, M 12 x 1 connection
Port Connection: 1/2 " BSPP
Housing: Stainless Steel 1.4301
Seal Material: FKM
Ambient Temperature Range: -13 to 185°F
Max. Fluid Temperature: 221°F
Shock Resistence: IEC 6.8-2-29
Vibration Resistence: IEC 6.8-2-6.
