Parker Diagnostic Meter Accessories Selection | Parker SensoControl
The following pressure transducers, flow sensors, adapters, cables and software work in concert with Parker SensoControl meters. Refer to the table below to see which SensoControl accessories are available for each diagnostic meter.Parker Accessories for SensoControl Meters
  |
Parker's SensoControl family of diagnostic meters, flow sensors, transducers, and other accessories is geared toward helping you find problems in hydraulic and pneumatic systems before they cause work stoppage. Our experts can help you select the right diagnostic tools for your system, and even train your mechanics after the purchase.

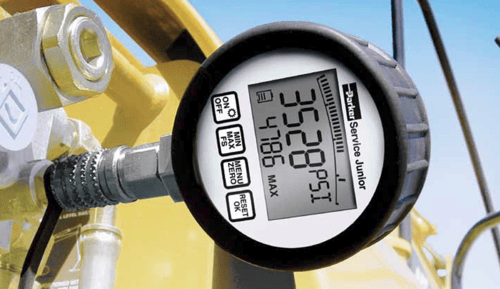

Parker SensoControl diagnostic tools provide fast and accurate measurements of pressure, flow, temperature, and rotational speed (RPM).
For more information, Email Our SensoControl Expert.
| DESCRIPTION | Serviceman Plus | Service Master Easy |
Service Master Plus |
Part Number |
| Storage Case - Small | • | SCC-150 | ||
| Storage Case - Medium | • | • | SC-690 | |
| Storage Case - Large Roller | • | • | • | SCC-500-ENG |
| Storage Insert - Holds Extra Sensors (Used with SCC-500-ENG Large Roller Case) |
• | • | • | SCC-500-INLET-ENG |
| Power Supply 120 Volt AC |
• | • | SCSN-450 | |
| Power Supply 120 Volt AC |
• | SCSN-460 | ||
| Connection Cable - Analog Used between meter and sensors (3M length) |
• | • | • | SCK-102-03-02 |
| Extension Cable - Analog Used in series with connection cables (5M length) |
• | • | • | SCK-102-05-12 |
| Connection Cable - CAN Used between meter and sensors (2M, 5M, 10M lengths) |
• | SCK-401-02-4F-4M SCK-401-05-4F-4M SCK-401-10-4F-4M |
||
| Pressure Transducers - Analog Five measurement ranges |
• | • | • | See Analog Transducers page |
| Pressure Transducers - CAN Five measurement ranges |
• | See CAN Transducers page | ||
| Flow Sensors - Analog Four measurement ranges |
• | • | • | See Analog Flow Sensors page |
| Flow Sensors - CAN Four measurement ranges |
• | See CAN Flow Sensors page | ||
| Temperature Sensor Used with Parker Flow Sensors or SCTA-1/4 Port Adapter (Requires standard connection cable) |
• | • | • | SCT-150-04-02 |
| Port Adapter Converts M10X1 to 1/4” male NPT thread |
• | • | • | SCTA-1/4 |
| Tachometer To measure rotational speed (0 to 10,000 RPM) |
• | • | • | SCRPM-220 |
| Contact Adapter For SCRPM-220 Tachometer |
• | • | • | SCRPMA-001 |
| Focus Adapter For SCRPM-220 Tachometer |
• | • | • | SCRPMA-002 |
| Diagnostic Test Hose Assembly (19”& 32” lengths) Used with PD style Parker Transducers and diagnostic nipples |
• | • | • | PDH-19 PDH-32 |
| Voltage Adapter Used with auxiliary sensors |
• | • | SCMA-VADC-600 | |
| Data Cable and Software To connect the Serviceman meter to a PC |
• | SCSW-KIT-152 | ||
| SensoWin Software For data transfer from any Parker Service Master meter to a PC |
• | • | N/A | |
| Data Cable Used between the Parker Service Master Easy meter and a PC |
• | SCK-315-02-34 | ||
| Data Cable Used between the Parker Service Master Plus meter and a PC |
• | SCK-318-02-35 |
