Service Junior - Digital Pressure Gauge


The Parker SensoControl Service Junior is an integrated digital pressure gauge with minimum/maximum memory capability.
The Service Junior meters can be purchased individually or in kits. For ServiceJunior kits, please see the bottom of this page. Other Senso Control meters also measure flow, temperature, pressure differential and more. Please go to Senso Control Meter Selection to compare different Senso Control meters.

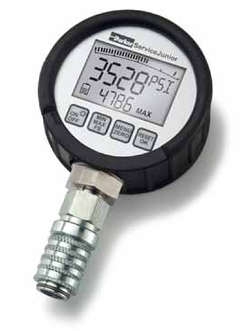

  Service Junior Digital Meter

User Manuals:

Capabilities:

  • Hand held digital pressure gauge

  • Measure and Display

Features:

  • Easy Operation

  • Backlit display

  • User-adjustable pressure units

  • Min/Max memory

  • Battery life indicator applications

  • Ranges for hydraulics and pneumatics

  • Scanning rate of 10ms

  • Fluid temperature:-4° to 176°F

Part Numbers & Specifications

ServiceJunior
PD Coupler

ServiceJunior
EMA3 Coupler

ServiceJunior
1/4" NPT Port

Measuring Range

Overload Pressure
(psi)

Resolution
(psi)

SCJR-0250-PD

SCJR-0250-EMA

SCJR-0250-4MP

-14.5 to 250 PSI (-1 to 16 bar)

580

0.1

SCJR-1500-PD

SCJR-1500-EMA

SCJR-1500-4MP

0 to 1500 PSI (0 to 100 bar)

2,900

1

SCJR-5800-PD

SCJR-5800-EMA

SCJR-5800-4MP

0 to 5800 PSI (0 to 400 bar)

11,600

1

SCJR-8700-PD*

 SCJR-8700-EMA**

SCJR-8700-4MP

0 to 8700 PSI (0 to 600 bar)

17,400

1

* PD Couplers rated to 6,000 PSI max
** EMA3 Couplers rated to 9,000 PSI max



Accessories

Part Number

Description

PD240 PD Series Diagnostic Coupler
SCA-7/16.-EMA-3 7/16. -18UNF-2B female to M16.X2.0 EMA3 female swivel
SCJA-1/4 7/16. -18UNF-2B female to 1/4” NPT male adapter
PDH-19 19” PD Hose extension to be used with PD nipple
PDH-32 32” PD Hose extension to be used with PD nipple
SMA3-400 16.” (400 mm) Hose assembly for EMA M16.X2.0 interface
SCC-110 Storage case for one gauge and diagnostic adapters
SCC-300  Storage case for three gauges and diagnostic adapters



ServiceJunior Kits

Parker SCJR1
SCJR1-KIT-PD
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(6) PD Style JIC Tee Fittings
      1/4" - 1" sizes
(6) PD Style ORFS Tee Fittings
      1/4" - 1" sizes
(1) PD Style Whip Hose
      32" length
(1) Case













SCJR1-KIT-EMA
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(6) EMA Style JIC Tee Fittings
      1/4" - 1" sizes
(6) EMA Style ORFS Tee Fittings
      1/4" - 1" sizes
(1) EMA Style Whip Hose
      32" length
(1) EMA Style Union
      Female to Male Adapter
(1) Case
Parker SCJR2
SCJR1-KIT-PD
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(1) ServiceJunior Gauge
      Range 0 - 1500 psi
(6) PD Style JIC Tee Fittings
      1/4" - 1" sizes
(6) PD Style ORFS Tee Fittings
      1/4" - 1" sizes
(2) PD Style Whip Hose
   32" length
(1) Case







SCJR1-KIT-EMA
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(1) ServiceJunior Gauge
      Range 0 - 1500 psi
(6) EMA Style JIC Tee Fittings
      1/4" - 1" sizes
(6) EMA Style ORFS Tee Fittings
      1/4" - 1" sizes
(2) EMA Style Whip Hoses
      32" length
(2) EMA Style Unions
      Female to Male Adapter
(1) Case
Parker SCJR3
SCJR1-KIT-PD
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(1) ServiceJunior Gauge
      Range 0 - 1500 psi
(1) ServiceJunior Gauge
      Range -14.5 - 250 psi
(6) PD Style JIC Tee Fittings
      1/4" - 1" sizes
(6) PD Style ORFS Tee Fittings
      1/4" - 1" sizes
(3) PD Style Whip Hose
      32" length
(1) Case



SCJR1-KIT-EMA
(1) ServiceJunior Gauge
      Range 0 - 5800 psi
(1) ServiceJunior Gauge
      Range 0 - 1500 psi
(1) ServiceJunior Gauge
      Range -14.5 - 250 psi
(6) EMA Style JIC Tee Fittings
      1/4" - 1" sizes
(6) EMA Style ORFS Tee Fittings
      1/4" - 1" sizes
(3) EMA Style Whip Hoses
      32" length
(3) EMA Style Unions
      Female to Male Adapter
(1) Case

3 Early Warnings of Hydraulic System Troubles:

Excerpt from one of our blogs...

  1. Slow Operation
  2. Increased Noise
  3. Elevated Temperature

1. Slow Operation

Longer cycle times are often the first symptom that there is something wrong with a hydraulic system. Decreased speed of hydraulic actuators (such as cylinders) points to decreased flow through the system.

2. Increased Noise

Knocking, loud whining, or screeching often indicates aeration or cavitation. Aeration means air inclusion in the hydraulic fluid, cavitation is the presence of vaporized hydraulic fluid in the system.

3. Elevated Temperature

Excessive temperature of hydraulic fluid (generally above 180°F), reduces its working life and damages seals in the system. In addition, viscosity of hydraulic fluid decreases with increasing temperature, which in turn results in inadequate lubrication and increased wear of the system's components.

Temperature alarms should be utilized to prevent damage caused by excessive hydraulic fluid temperatures.
