SensoControl Service Master Easy | Parker SCM-340-2-02

    Service Master Easy - Digital Diagnostic Meter | Part # SCM-340-2-02


    The Parker Service Master Easy is a rugged, portable diagnostic tool. It is an excellent alternative to conventional mechanical pressure gauges.
    The Service Master Easy meters can be purchased individually or in kits. For Service Master Easy kit, please see the bottom of this page. Other Senso Control meters and gauges are available, please go to SensoControl Meter Selection to compare different SensoControl meters.

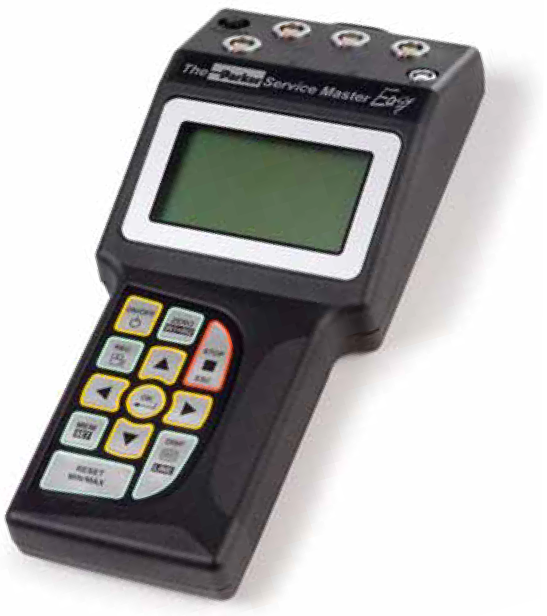

      SensoControl Service Master Easy Digital Meter

    User Manuals:

    Capabilities:

    • Hand held diagnostic meter

    Measure and Display:

    • Pressure

    • Flow

    • RPM (rotations per minute)

    • Temperature

    Features:

    • Intuitive Operation

    • 4 Sensor Inputs

    • 4-Line Numerical Display

    • Calculated Channels

    • Store Data on Device

    • Store Data on PC

    • 1-ms Scan Rate

    • 0.25-ms Burst Scan Rate

    Connection Diagram | Service Master Easy SCM-340-2-02

    Service Master Easy Connection Diagram

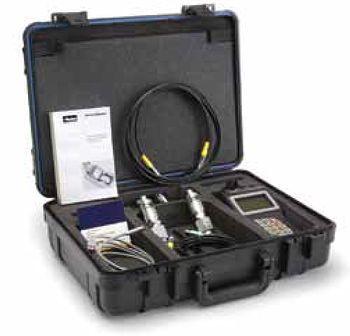

    SensoControl Service Master Easy Kit

     SensoControl Service Master Easy Kit

    Service Master Easy Kit Contents

    • Case (SCC-690)
    • Serviceman meter (SCM-340-2-02)
    • 2 Transducers (see below)
    • 2 Cables, 3 m (SCK-102-03-02)
    • Power Supply (SCSN-450)
    • SensoWin Software 6.0 (SC-CD 4082)
    • USB PC Cable
    • Instructions Manual

    Code for Ordering Service Master Easy Kits

    PDSME-34-C-TT-TT

    • C - Coupling style:
      • 2 = PD style
      • 4 = PDP style
      • 6 = EMA 3 style (female)
    • TT - Transducer pressure range (psi)
      (Order either one or two)
      • 01 = -14.5 - +235 (Blue)
      • 06 = 0 - 870 (Green)
      • 15 = 0 - 2175 (Yellow)
      • 40 = 0 - 5800 (Orange)
      • 60 = 0 - 8700 (Red)



    SensoControl Service Master Easy Support



    Hose & Fittings, Etc. supports its customers during and after the purchase of SensoControl Service Master meters. Our in-house expert is available to train your mechanics at your location (anywhere in Northern California and North-Western Nevada). If you prefer, training can also be arranged in Hose & Fitting, Etc’s West Sacramento headquarters.

    TECHNICAL DATA
    Service Master Easy
    SCM-340-2-02

    METER

    • Digital LCD Text Display
      • 128x64 px
      • 72x40 mm Screen
      • 6 mm Character Height
    • Displays: pressure, temperature, flow and rotational speed
      • Pressure - PSI and Bar
      • Temp. - °F and °C
      • Flow - GPM and l/min
      • Speed - RPM
    • Differential Value Mesaurement
    • Min/Max Memory
    • Online Data Transfer
    • Batery Level Indicator
    • Power Calculation (Display Only)
    • Flow Run-Out (Display Only)
    • Auto Power-Off

    INPUTS

    • Four 5-pin Push/Pull Inputs
    • 12-bit A/D Convertor (4096 Steps)
    • Auto-Sensor Recognition
    • Selectable Scanning Rate in 1 ms intervals
    • 0.25 ms Burst Mode (Input 1)

    OUTPUT

    • USB 2.0

    POWER

    • 9V Rechargeable Ni-MH Battery
    • 8-Hour Battery Life
    • 3-Hour Charge Time
    • Recharge Circuit for Use with External Power supply
    • Excitation Voltage: 12-30 V (DC)

    AMBIENT CONDITIONS

    • Operating Temperature 32°F - 122°F
    • Storing Temperature -4°F - 140°F

    HOUSING

    • Glass Reinforced Polamide
    • EMC Protection: DIN/EN 50081, Part 1
    • Immunity to Emitted Interference: DIN/EN 50082, Part 2

    DIMENSIONS

    • 9.25 x 4.19 x 2.09 in
    • 235 x 106 x 52 mm
    • 1.2 lb
    • 700 g
