SensoControl Service Master Plus | Parker K-SCM-500-01-01-ENG

    Service Master Plus - Digital Diagnostic Meter | Part # K-SCM-500-01-01-ENG


    The Parker Service Master Plus is a premiere portable diagnostic tool. It incorporates data measurement, display, and on-screen analysis in one package.
    The Service Master Plus meters can be purchased individually or in kits. For Service Master Plus kit, please see the bottom of this page. Other SensoControl meters and gauges are available, please go to SensoControl Meter Selection to compare different SensoControl meters.

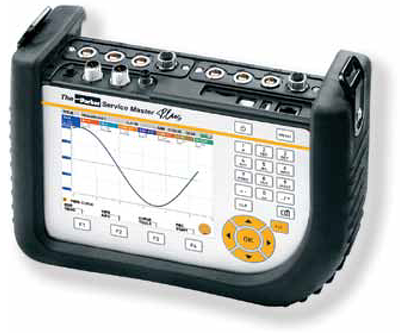

      SensoControl Service Master Plus Digital Meter

    User Manuals:

    • Service Master Plus User Manual

    • Service Master Plus Instrucciónes para el manejo

    • Service Master Plus Bedienungsanleitung

    • Service Master Plus Mode d'emploi

    • Service Master Plus Gebruiksaanwijzing

    • Service Master Plus Istruzioni per l'uso

    Capabilities:

    • Hand held diagnostic meter

    Measure and Display:

    • Pressure
    • Flow
    • RPM (rotations per minute)
    • Temperature
    • Auxiliary Inputs

    Features:

    • 26 Sensor Inputs
    • Auto Sensor Recognition
    • CAN open sensors
    • Full Color Data Display
    • SensoWin Software Utility
    • Store Data on the Device, PC or micro SD Card
    • Rugged Design
    • 1-ms Scan Rate
    • Configurable as FASAT-mode analog inputs - 0.1-ms Scan Rate

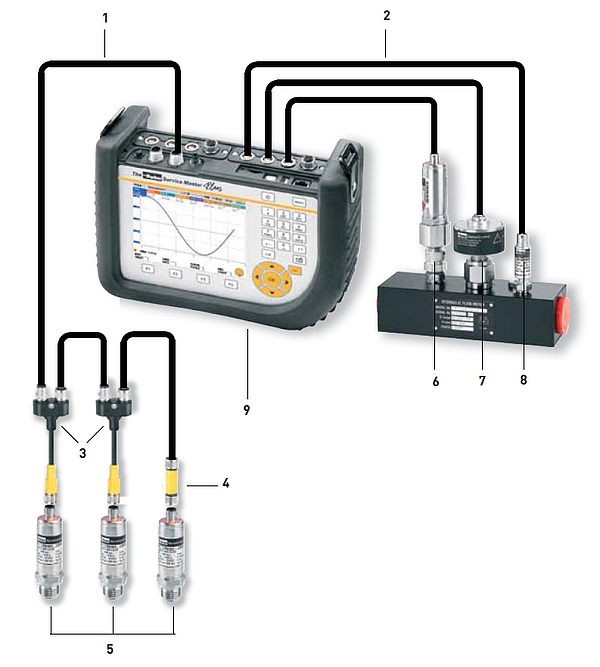

    Connection Diagram | Service Master Plus K-SCM-500-01-01-ENG

    Service Master Plus Diagram

    Key Description Part Number
    1 CAN Connection Cable (2M, 5M & 10M) SCK-401-02-4F-4M
    SCK-401-05-4F-4M
    SCK-401-10-4F-4M
    2 Analog Connection Cable (3M) SCK-102-03-02
    3 CAN Y-Junction SCK-401-0.3-Y
    4 CAN Terminating Resistor SCK-401-R
    5 CAN Pressure/Temperature Sensor PDXXXXX-XXXX-CAN
    6 Analog Pressure/Temperature Sensor PDXXXXX-XXXX
    7 Analog Flow Sensor SCFT-XXXX-XXX
    8 Analog Temperature Sensor SCT-150-04-02
    9 Service Master Plus Instrument K-SCM-500-01-01-ENG
    - CAN Flow Sensor SCFT-XXXX-XXX-CAN

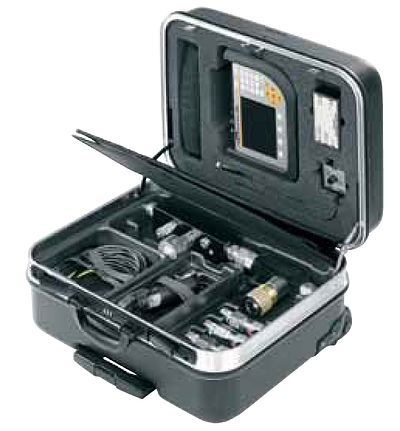

    SensoControl Service Master Plus Kit

     SensoControl Service Master Plus Kit

    Service Master Plus Kit Contents

    • Case (SCC-500-ENG)
    • Service Master Plus meter (K-SCM-500-01-01-ENG)
    • 2 Transducers (see below)
    • 2 Cables, 5 m (see below)
    • Power Supply (SCSN-460)
    • SensoWin Software 6.0 (SC-CD 4082)
    • USB PC Cable (SCK-318-02-35)
    • SensoWin Software
    • Instructions Manual
    • CAT 5 LAN Cable

    Code for Ordering Service Master Plus Kits

    PDSMP-50-C-TT-TT-XXX

    • C - Coupling style:
      • 2 = PD style
      • 6 = EMA 3 style (female)
    • TT - Transducer pressure range (psi)
      (Order either one or two)
      • 01 = -14.5 - +235 (Blue)
      • 06 = 0 - 870 (Green)
      • 15 = 0 - 2175 (Yellow)
      • 40 = 0 - 5800 (Orange)
      • 60 = 0 - 8700 (Red)
    • XXX - Technology
      • CAN = CAN Bus
      • Leave blank for Analog




    SensoControl Service Master Plus Support



    Hose & Fittings, Etc. supports its customers during and after the purchase of SensoControl Service Master meters. Our in-house expert is available to train your mechanics at your location (anywhere in Northern California and North-Western Nevada). If you prefer, training can also be arranged in Hose & Fitting, Etc’s West Sacramento headquarters.






    TECHNICAL DATA
    Service Master Plus
    K-SCM-500-01-01-ENG

    FUNCTIONS

    • Measures actual, Min, and Max quantities
    • Displays numerical values, bar graph, pointer, and curve graph (function)
    • Remote operation via Ethernet
    • Acustic event notifications
    • Displays: pressure, temperature, flow and rotational speed
      • Pressure - PSI and Bar
      • Temp. - °F and °C
      • Flow - GPM and l/min
      • Speed - RPM
    • Differential Value Mesaurement
    • Min/Max Memory
    • Online Data Transfer
    • Batery Level Indicator
    • Auto Power-Off
    • Color Display
      • 115 x 86 mm Screen
      • 640 x 480 px

    INPUT/OUTPUT

    • 2 CANbus Networks with 8 Inputs Each (16 Total)
    • 6 Senso Control Sensor Inputs
    • Parker Automatic Sensor Recognitioin
    • 5-Pin Push-Pull Connections
    • 2 Auxiliary Analog Inputs for Measuring Current
      and Voltage
    • Configurable as FAST-Mode Analog Inputs (0.1 ms Scanning Rate)
    • Digital Active High I/O 7 to 24 V (DC)
    • Digital Active Low I/O < 1 V (DC)
    • Input Impendance - 1 k-Ohm
    • Output Current - 20 mA

    MEMORY

    • Internal - 64 MB
    • External Micro SD Slot
    • External USB Mass STorage Slot
    • 6 Million Data Points per Measurement
    • 1 Billion Data Points Total Storage

    POWER

    • Internal Lithium-Ion Pack
    • External 110V/240V AC
    • 8-Hour Battery Life
    • 3-Hour Charge Time

    AMBIENT CONDITIONS

    • Operating Temperature 32°F - 112°F
    • Storing Temperature -10°F - 140°F
    • Relative Humidity < 80%

    HOUSING

    • ABS/PC (Thermoplastic) Casing
    • Housing Protective Sleeve Material: TPE (Thermoplastic Elastomer)
    • Protection:
      • IEC60068-2-32, (1 m Free Fall)
      • IP64 (to EN60529, unconnected)
      • IP54 (connected)

    DIMENSIONS

    • 257 x 181 x 75 mm
    • 3.4 lb
